Removing and installing carpet lining
Shown on 911 Carrera (996)

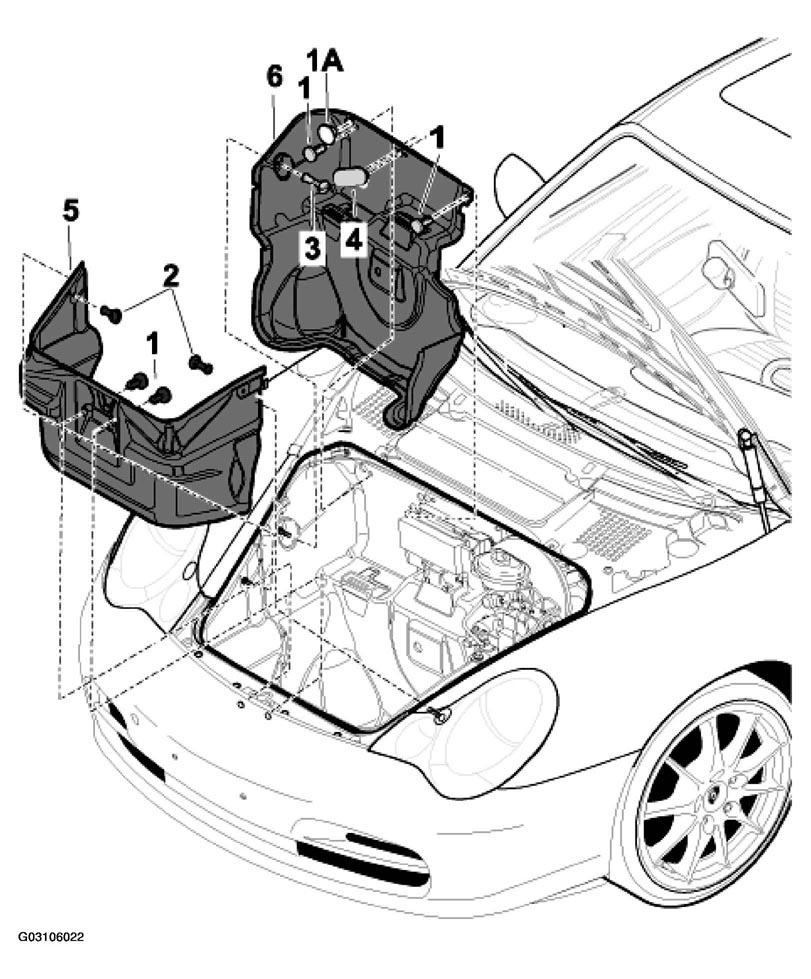

Courtesy of PORSCHE OF NORTH AMERICA, INC. CARPET LINING REMOVING AND INSTALLING PROCEDURE
| No. |
Designation |
Qty. |
Removal |
Installation |
| 1 |
Plug |
4 |
Removal tool |
Press in. |
| 2 |
Short plastic nuts |
1 |
Unscrew. |
Screw in. |
| 3 |
Long plastic nuts |
3 |
Unscrew. |
Screw in. |
| 4 |
Cover cap |
1 |
|
|
| 5 |
Front carpet lining |
2 |
|
|
| 6 |
Rear carpet lining |
2 |
|
|
