Removing and installing cowl panel cover

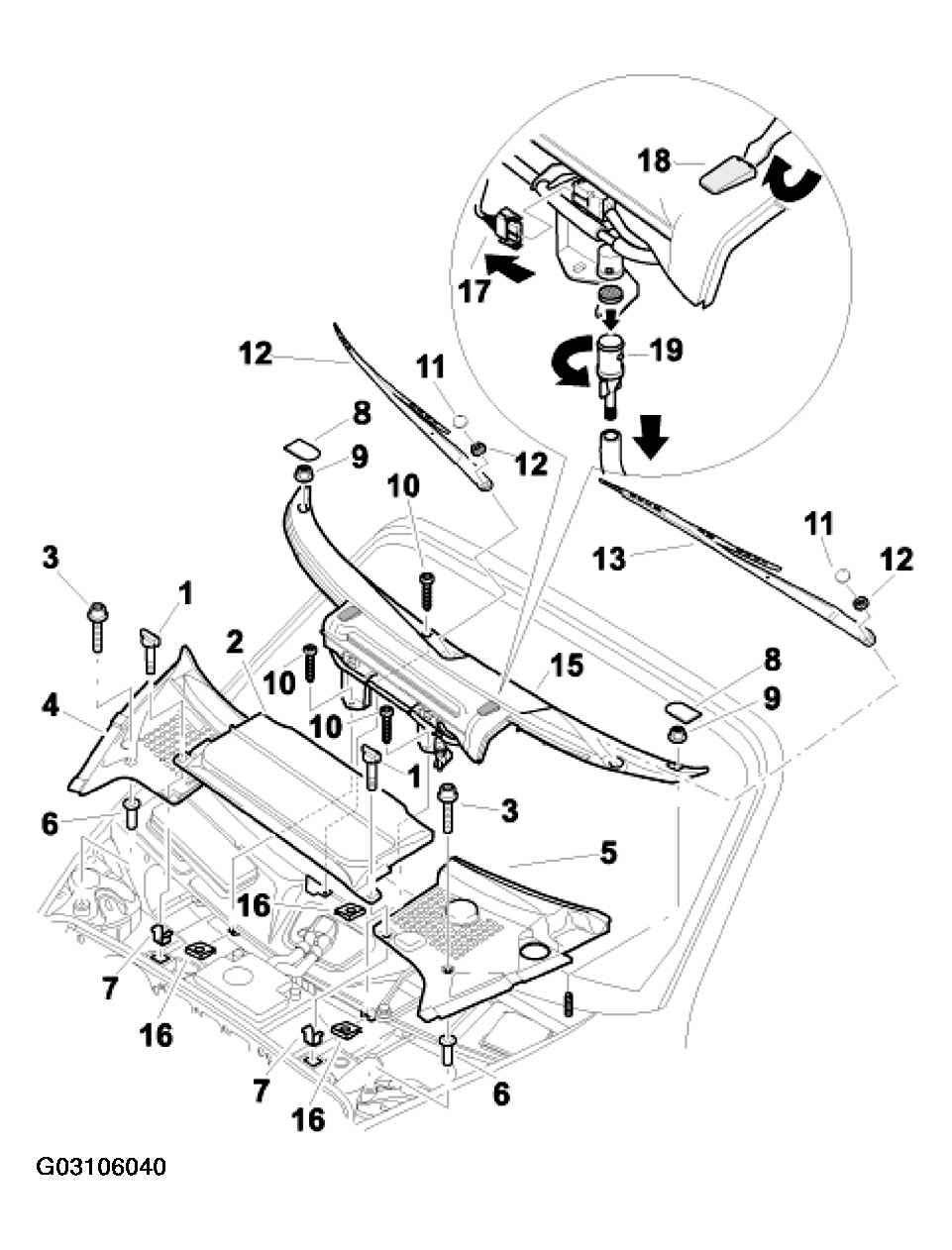

COWL PANEL COVER REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Twist lock | 2 | ||
| 2 | Battery cover | 1 | ||
| 3 | T25 Torx screw M5 x 30 | 2 | ||
| 4 | Radiator tank cover, right | 1 | ||
| 5 | Radiator tank cover, left | 1 | ||
| 6 | Dummy press-in nut | 2 | ||
| 7 | Cam | 2 | Unclip. | Clip in. |
| 8 | Cover cap | 2 | Position and press in. | With a small screwdriver. |
| 9 | T5 plastic nut | 2 | Check, replace if necessary. | |
| 10 | Torx screw T20 x 20 | 3 | ||
| 11 | Cover | 1 | ||
| 12 | Nut | 2 | Undo. | Tightening torque: -17 Nm (13 ftlb.)- |
| 13 | Left wiper arm | 1 | ||
| 14 | Right wiper arm | 1 | ||
| 15 | Cowl panel cover | 1 | ||
| 16 | Sheetmetal nut B4.8 | 3 | Adjust to centre of hole. | |
| 17 | Electrical plug connection | 2 | Press locking tabs together and separate electrical plug connection. | Connect electrical plug connection. |
| 19 | Spray nozzle | 2 | Use a screwdriver to lift the spray nozzle at the front edge. Pull off water hose. | Push on water hose and press spray nozzle into the cowl panel cover. |
| 19 | T-piece (filter element) | 1 | Twist and pull off. Remove filter element. | Clean filter element if necessary. |
