Removing rear roof lining

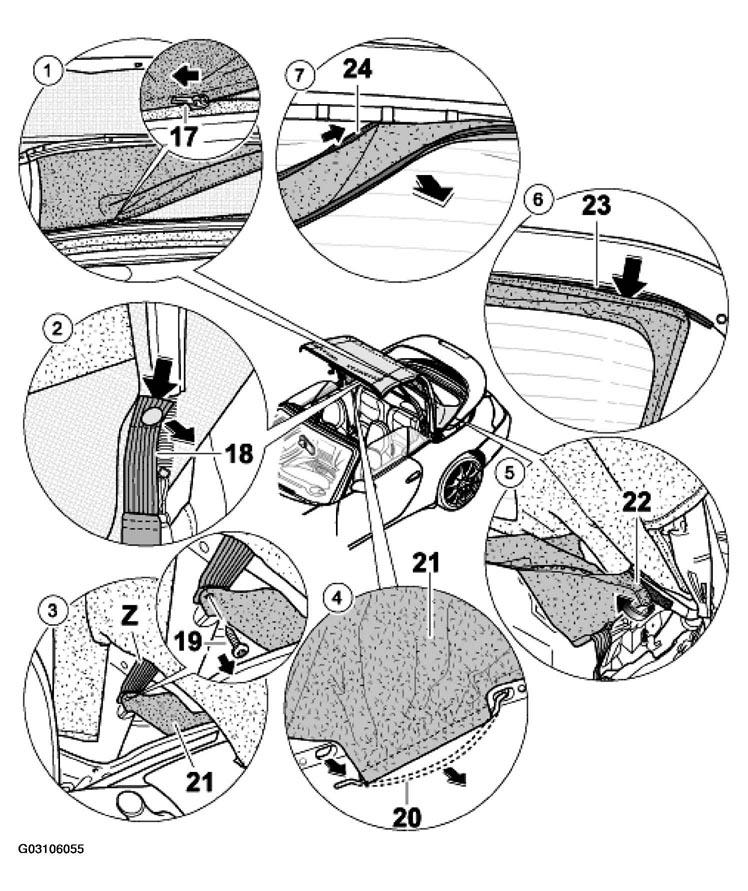

Fig 1: Removing Rear Roof Lining (Cabriolet, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR ROOF LINING REMOVING PROCEDURE (CABRIOLET, AS OF MY 2002)

No.	Procedure	Instructions
	Opening the side Velcro fastening	Open the velcro fastening on the side roof lining on the left and right. See:
1	Open zip fastener.	Disconnect the rear roof lining from the convertible-top cover by opening the zip fastener -17- . See Fig 1 .
2	Disconnecting push-button	Disconnecting push-button -18- . See Fig 1 .
3	Unscrewing the connection	Unscrew fastening screw -19-Z-21- . See Fig 1 .
4	Removing tension hook of side metal struts	Bend brace-20-direction of arrow-21- . See Fig 1 .
5	Opening the Velcro fastening	Open the velcro fastening -22- . See Fig 1 .
6	Undoing connection on tension bow	Press connection -23- . See Fig 1 .
7	Pulling out connection on the rear window	Pull connection -24- . See Fig 1 .
