Removing side roof lining

  1. Opening the Velcro fastening

    Disconnect the velcro fastening connection -11a- between the roof lining -11- at the side and the corner bow -11b- in -direction of arrow-.

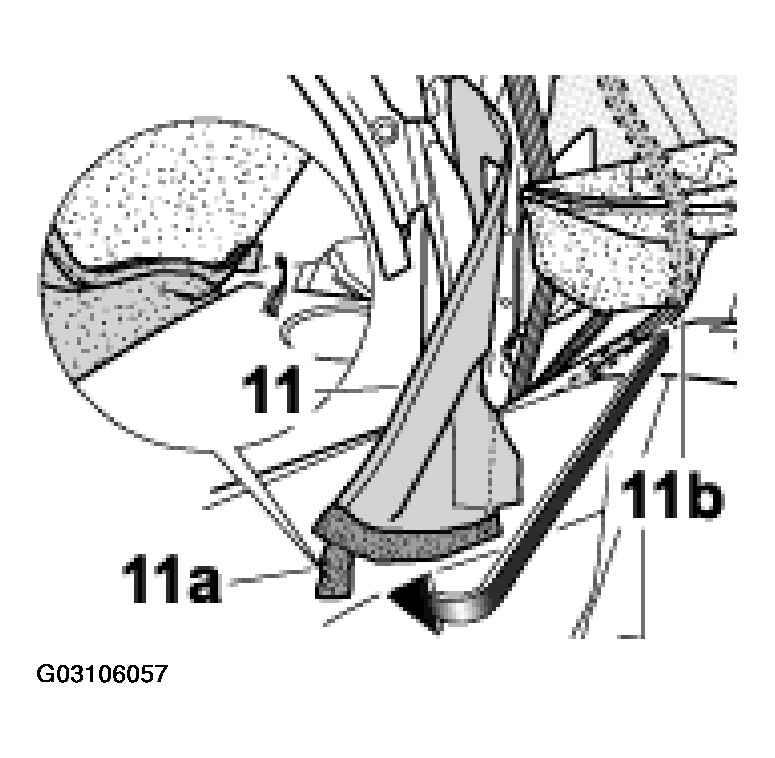

    Fig 1: Disconnecting Velcro Fastening Connection Between Roof Lining At The Side And The Corner Bow (Cabriolet, As Of MY 2002)
    G03106057Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Removing roof lining at sides of roof frame 3
    1. Drill out the fastening rivets -12a-. Remove the roof lining at the side -11- and the plastic insert -12b-.

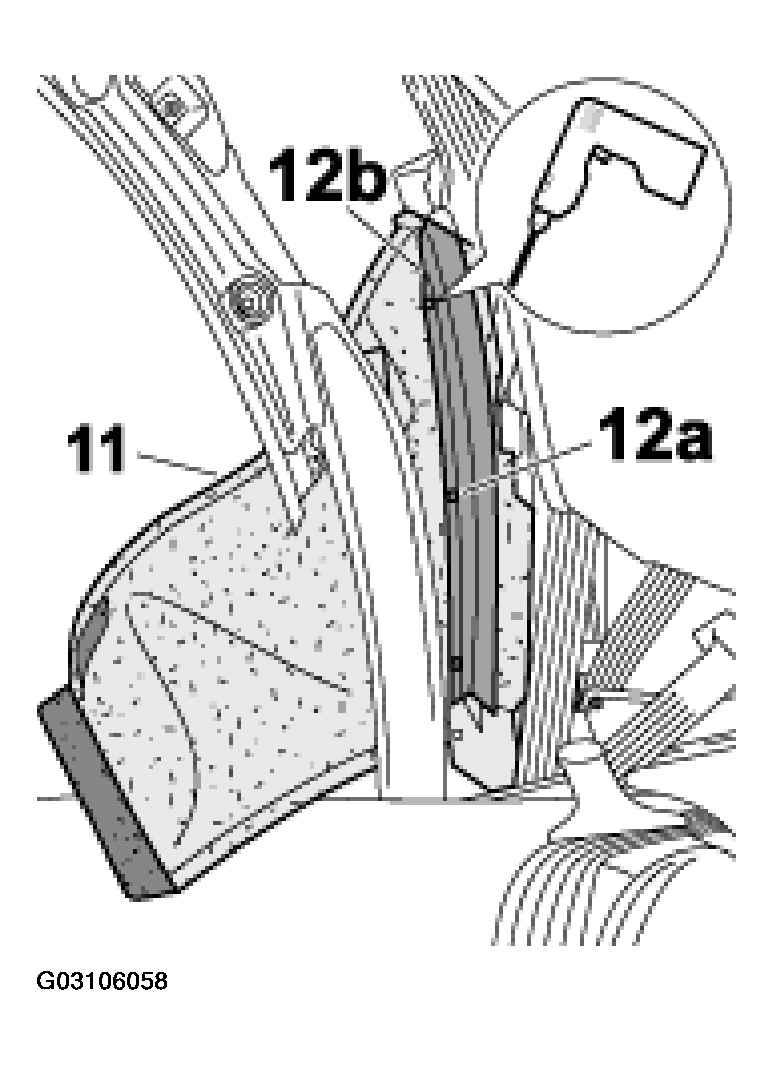

    Fig 2: Removing Roof Lining At Sides Of Roof Frame 3 (Cabriolet, As Of MY 2002)
    G03106058Courtesy of PORSCHE OF NORTH AMERICA, INC.
