Installing side roof lining

1. Position the roof lining at the side -11- and the plastic insert -12b- on the main bow. See Fig 1 .
2. Rivet on to the holes provided on the main bow using the fastening rivets -12a- (included in scope of replacement parts). See Fig 1 .

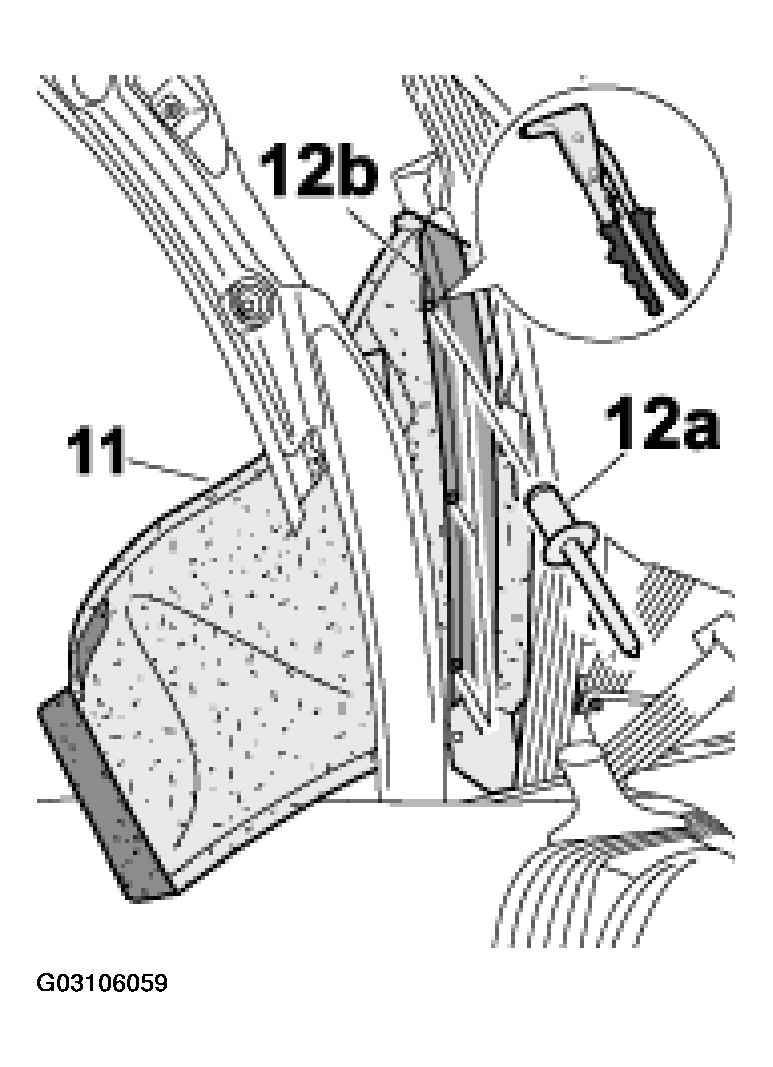

Fig 1: Installing Roof Lining At Sides Of Roof Frame 3 (Cabriolet, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Close the velcro fastening connection -11a- between the roof lining -11- at the side and the corner bow -11b- in -direction of arrow-.

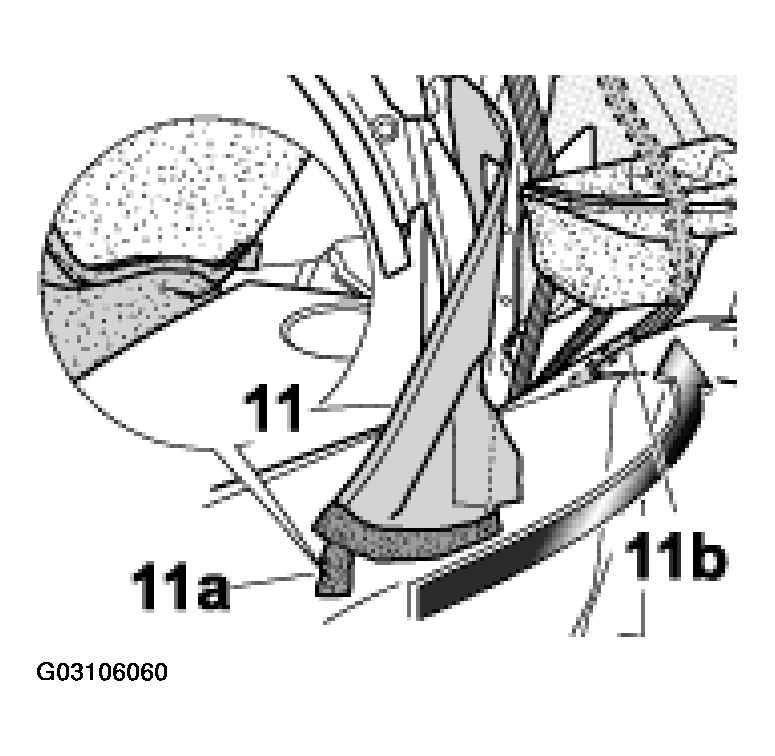

Fig 2: Closing Velcro Fastening (Cabriolet, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
