Installing rear roof lining

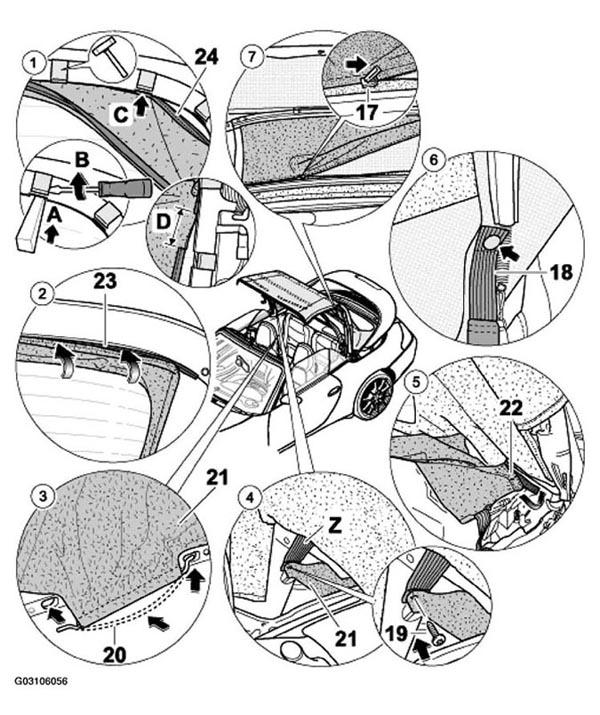

Fig 1: Installing Rear Roof Lining (Cabriolet, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR ROOF LINING INSTALLING PROCEDURE (CABRIOLET, AS OF MY 2002)

No.	Procedure	Instructions
1	Fitting roof lining connection for the rear window	Lift the metal clips using a plastic spatula -A-B-24-C-D- . See Fig 1 .
2	Installing roof liner connection to tension bow?	Press the roof lining connection -23- . See Fig 1 .
3	Installing brace of side metal struts	Insert brace -20- . See Fig 1 .
4	Tightening fastening screws	Position the bracing strap -Z-21-19- . See Fig 1 .
5	Closing the Velcro fastening.	Close the velcro fastening -22- . See Fig 1 .
6	Closing the push-button	Close push-button -18- . See Fig 1 .
7	Closing zip fastener	Connect the rear roof lining to the main bow connection above the corner bow using the zip fastener -17- . See Fig 1 .
	Closing the Velcro fastening of the side roof lining	Close the velcro fastening on the side roof lining on the left and right. See:
