Installing roof lining

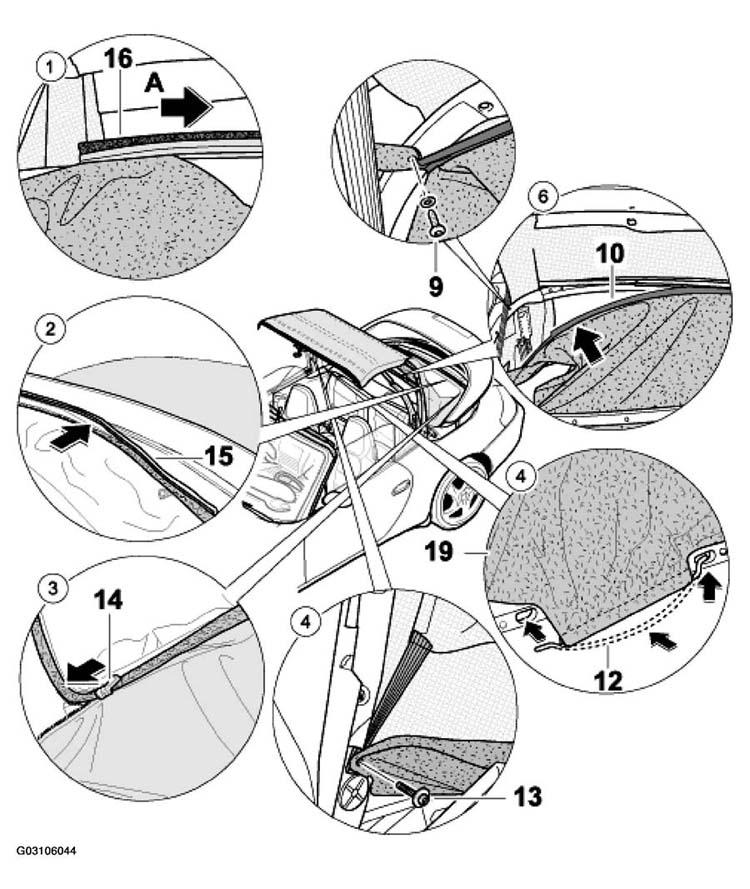

Fig 1: Installing Roof Lining (Steps 1-6) (Cabriolet, Up To MY 2001)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF LINING INSTALLING PROCEDURE (STEPS 1-6) (CABRIOLET, UP TO MY 2001)

No.	Procedure	Instructions
1	Installing roof lining connection at the corner bow	Insert roof lining connection -20-direction of arrow- . See Fig 1 .
2	Engaging roof lining	Engage roof lining -13-19- . See Fig 1 .
3	Closing zip fastener	Connect zip fastener -17-13-18- . See Fig 1 .
4	Installing bracing strap and roof lining	Position bracing strap -15-13-16- . See Fig 1 .
5	Installing tension hook of side metal struts	Insert brace into the textile case of the roof lining -13-14- . See Fig 1 .
6	Installing clamping rail connection from the main bow	Push clamping rail connection -10-direction of arrow-9- . See Fig 1 .

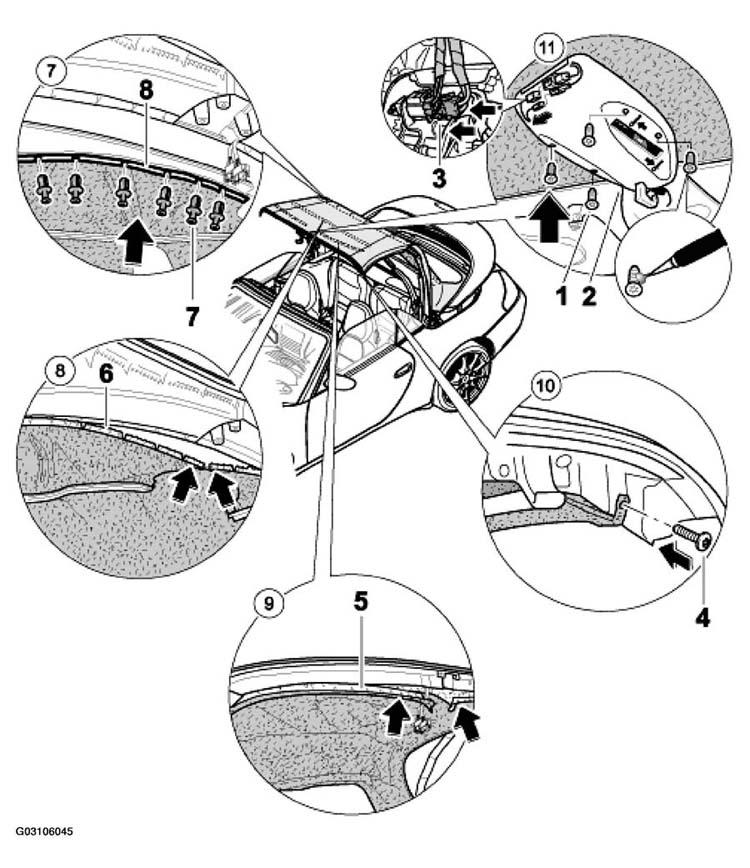

Fig 2: Installing Roof Lining (Steps 7-11) (Cabriolet, Up To MY 2001)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF LINING INSTALLING PROCEDURE (STEPS 7-11) (CABRIOLET, UP TO MY 2001)

No.	Procedure	Instructions
7	Installing roof lining connection on front roof frame 2	Position cover strip -8-7- . See Fig 2 .
8	Pushing on the clamping rail at the rear	Push on sewn-on clamping rail -6- . See Fig 2 .
9	Pushing on front clamping rail	Push front sewn-on clamping rail -5- . See Fig 2 .
10	Tightening front clamping rail	Tighten the connection -4- . See Fig 2 .
11	Installing convertible-top lock	Plug in electrical plug connection -3-2-1- . See Fig 2 .
	Ending service position
