Removing A-pillar trim

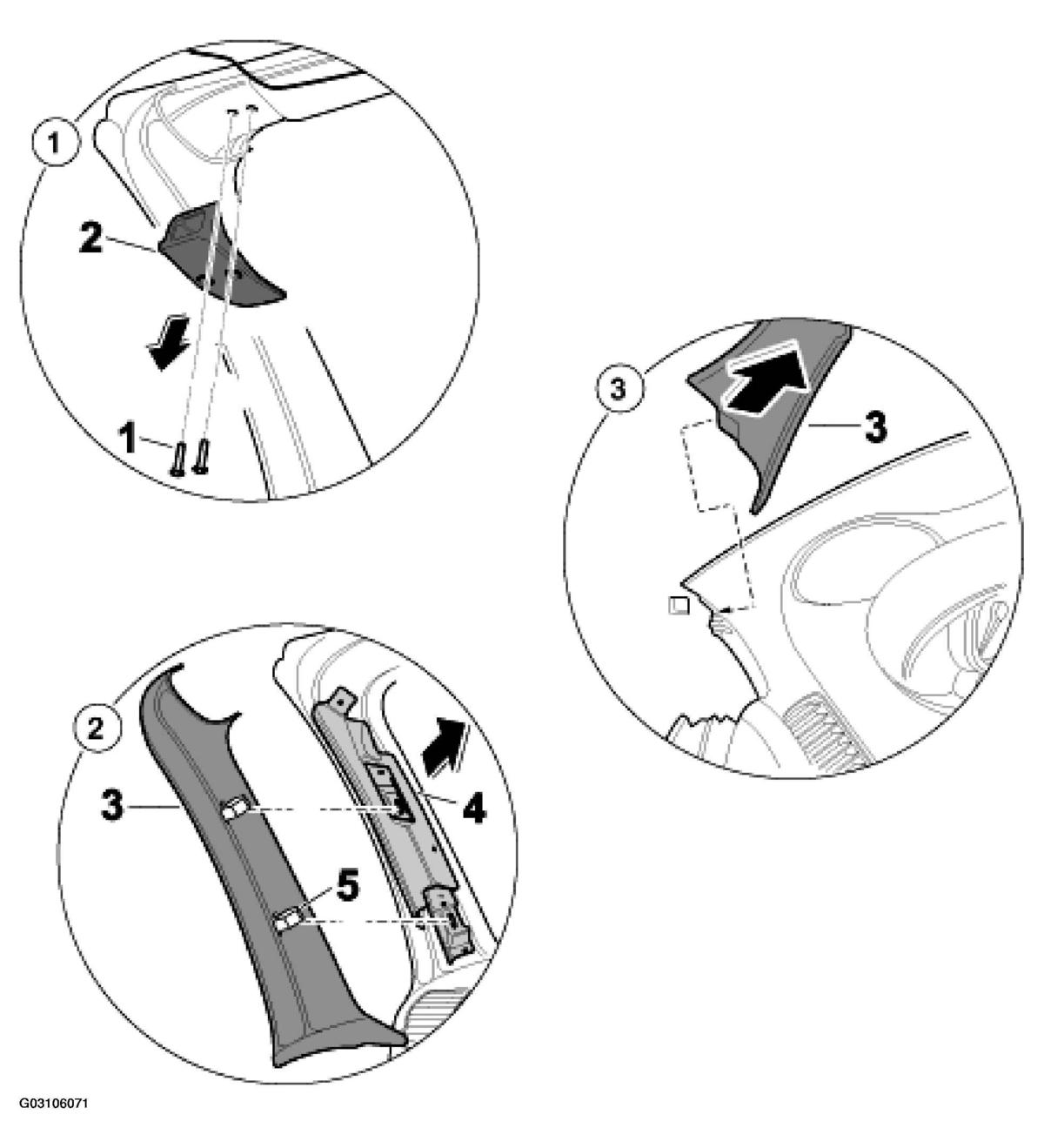

Fig 1: Removing A-Pillar Trim (Cabriolet)
G03106071Courtesy of PORSCHE OF NORTH AMERICA, INC.
A-PILLAR TRIM REMOVING PROCEDURE (CABRIOLET)

No. Procedure Instructions
1 Remove convertible-top peg housing Unscrew fastening screw -1-2-  . See Fig 1 .
2 Unclip the A-pillar trim Pull the A-pillar trim -7-direction of arrow-  . See Fig 1 .
3 Remove the A-pillar trim Remove the A-pillar trim -3-in the direction of the arrow-  . See Fig 1 .
