Installing A-pillar trim
A-PILLAR TRIM INSTALLING PROCEDURE (CABRIOLET)
| No. | Procedure | Instructions |
|---|---|---|

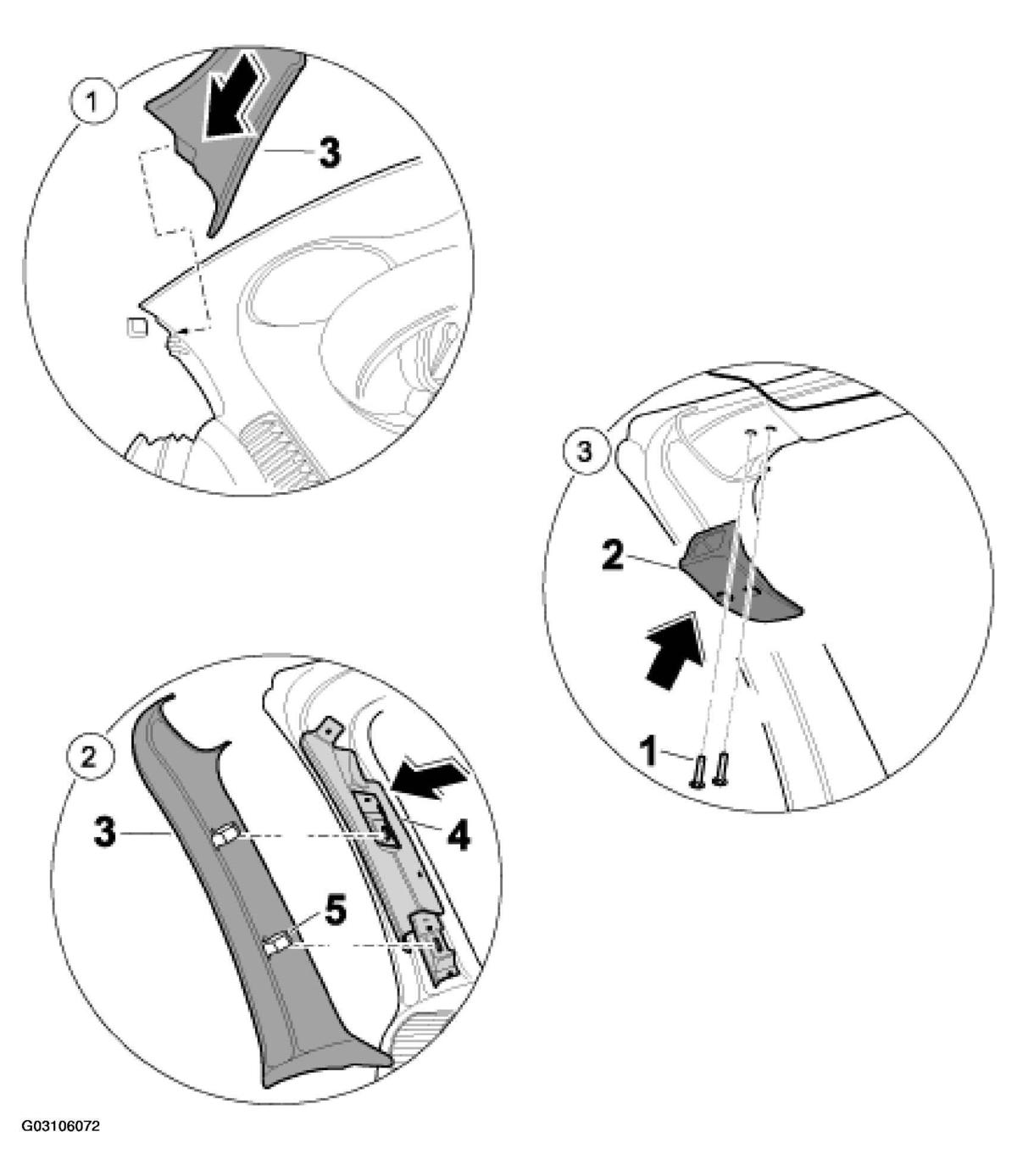

| 1 | Install A-pillar trim | Before installation, check that the deformation element is seated properly -4-5-3-direction of the arrow- . See Fig 1 . |
| 2 | Clip in A-pillar trim | Clip in the A-pillar trim -3-direction of arrow- . See Fig 1 . |
| 3 | Install convertible-top peg housing | In order to avoid rattling noises, each of the convertible-top peg housings on the left and right -2-1- . See Fig 1 . |
