Removing A, B and C-pillars: Notes

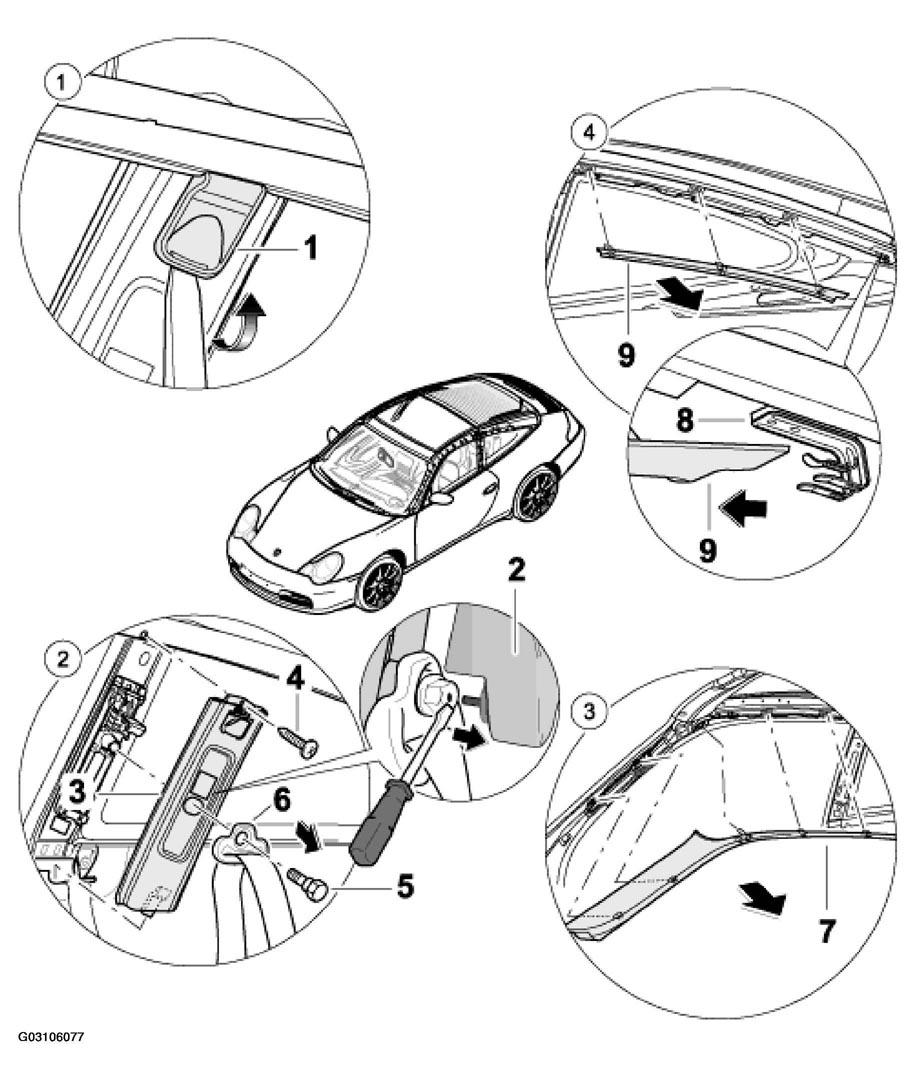

Fig 1: Removing A, B And C-Pillars (Targa)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A, B & C-PILLARS REMOVING PROCEDURE (TARGA)

No.	Procedure	Instructions
1	Unclipping clothes hook bracket	Lift up the clothes hook bracket -1- . See Fig 1 .
2	Removing B-pillar trim	Press out seat belt height adjuster release -2-5-5-6-4-3- . See Fig 1 .
3	Unclipping the A-pillar trim.	Pull the A-pillar trim -7- . See Fig 1 .
4	Unclipping the C-pillar trim	Pull the C-pillar trim -9-8-direction of arrow- . See Fig 1 .
