Installing A, B and C-pillars: Notes

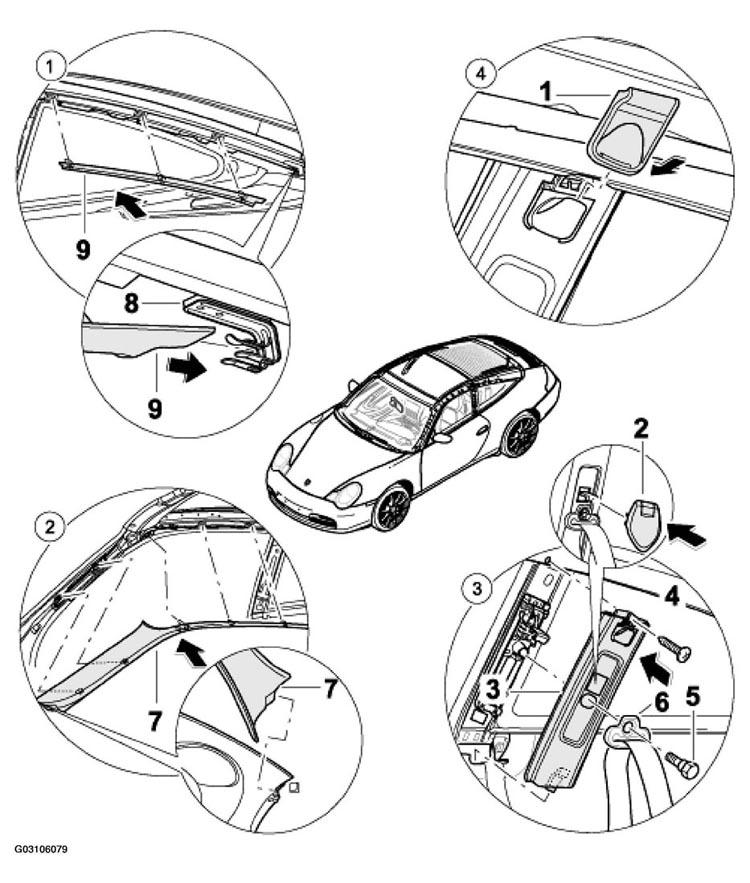

Fig 1: Installing A, B And C-Pillars (Targa)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A, B & C-PILLARS INSTALLING PROCEDURE (TARGA)

No.	Procedure	Instructions
1	Clipping in C-pillar trim	Insert C-pillar trim -9-8-direction of arrow- . See Fig 1 .
2	Clipping in A-pillar trim.	Clip the A-pillar trim -7- . See Fig 1 .
3	Installing B-pillar trim	Insert the B-pillar trim -3-4-6-5-2- . See Fig 1 .
4	Clipping in clothes hook bracket	Insert clothes hook bracket -1- . See Fig 1 .
