Removing the cigarette lighter

  1. Disengage the cover -arrow A-  upwards. See Fig 1 .
  2. Press the lights bracket -arrow B-  out to the side with a narrow screwdriver. See Fig 1 .
  3. Disengage the cigarette lighter in the direction of -arrow C-  out of the front cover. See Fig 1 .

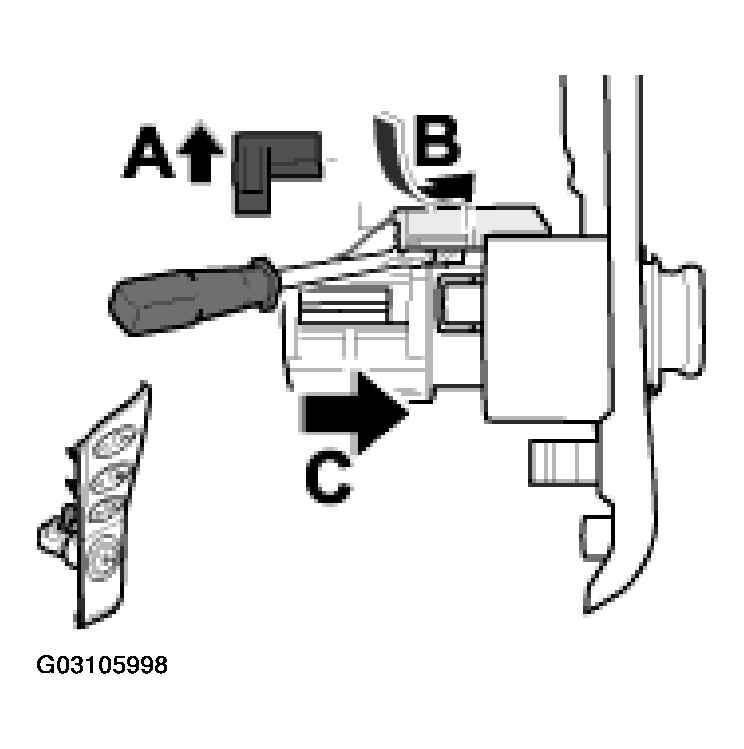

    4. Fig 1: Removing Cigarette Lighter (As Of MY 1997)
    G03105998Courtesy of PORSCHE OF NORTH AMERICA, INC.
