Assembling the dashboard: Notes

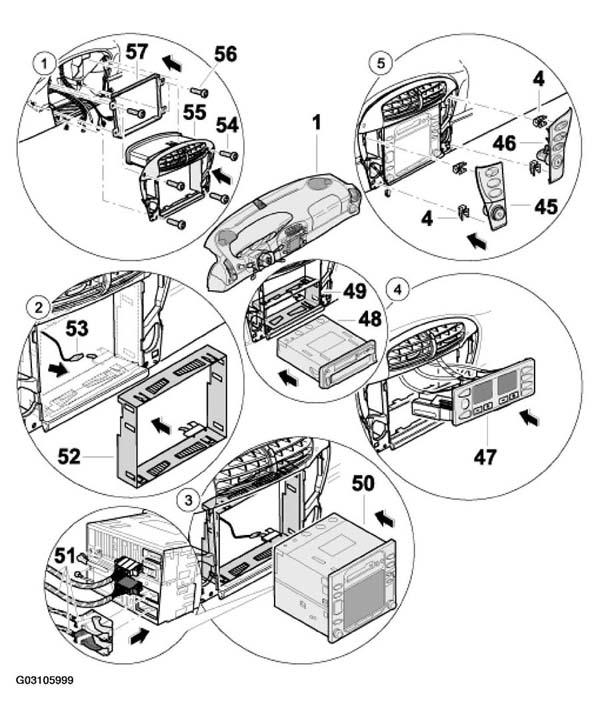

Fig 1: Assembling Dashboard (Steps 1-5) (As Of MY 1997)
G03105999Courtesy of PORSCHE OF NORTH AMERICA, INC.
DASHBOARD ASSEMBLING PROCEDURE (STEPS 1-5) (AS OF MY 1997)

No. Procedure Instructions
  Installing the regulator for wiping interval
  Installing the cigarette lighter
1 Installing the inside retaining bracket and the central vent Position the inside retaining bracket -57-1-56-55-54-  . See Fig 1 .
2 Installing the PCM retaining bracket Insert the retaining bracket -52-53-  . See Fig 1 .
3 Installing the PCM -50-  . See Fig 1 . Connect the electrical plug connection -51-  . See Fig 1 .
    Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) .
4 Installing the electrical air-conditioning and heating regulator variant -47-48-  . See Fig 1 . Refer to REMOVING AND INSTALLING HEATING/AIR-CONDITIONING CONTROL and RADIO - 911 CARRERA (996) .
5 Installing the switch covers Plug in the electrical plug connections. (Observe the colour designation of the wiring harness switches). -4-45 and 46-  . See Fig 1 .
    Check the clips -4-45 and 46-  . See Fig 1 .

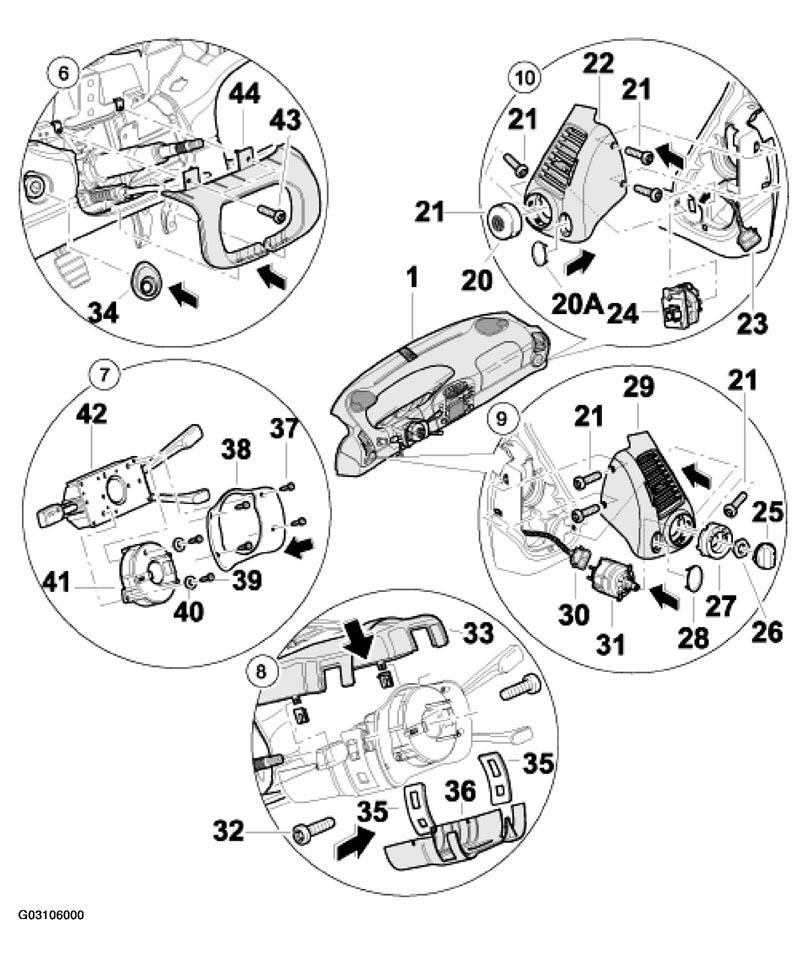

Fig 2: Assembling Dashboard (Steps 6-10) (As Of MY 1997)
G03106000Courtesy of PORSCHE OF NORTH AMERICA, INC.
DASHBOARD ASSEMBLING PROCEDURE (STEPS 6-10) (AS OF MY 1997)

No. Procedure Instructions
6 Installing the steering column cover Position the steering column cover -44-43-  . See Fig 2 .
7 Installing the steering column switch Connect the electrical plug connection of the steering column switch -42-41-38-37-  . See Fig 2 .
    Refer to REMOVING AND INSTALLING THE CONTACT UNIT .
8 Installing the steering column switch cover Position the steering column switch cover at the top and bottom or laterally -33, 36, 35-32-36-33-  . See Fig 2 .
9 Installing left side vents and main light switch Connect the electrical plug connection-30-31-27-29-27-26-3.5 Nm (2.5 ftlb.)--21-25-28-  . See Fig 2 .
10 Installing the right side vents and the temperature sensor Engage the temperature sensor -24-1-22-1-21-20, 20A  . See Fig 2 .

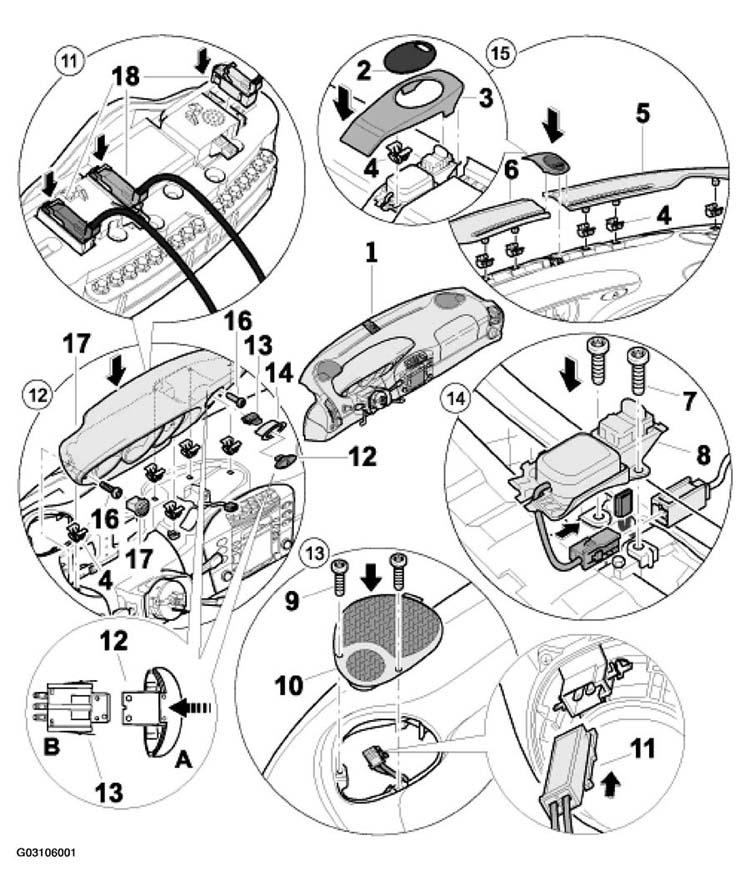

Fig 3: Assembling Dashboard (Steps 11-15) (As Of MY 1997)
G03106001Courtesy of PORSCHE OF NORTH AMERICA, INC.
DASHBOARD ASSEMBLING PROCEDURE (STEPS 11-15) (AS OF MY 1997)

No. Procedure Instructions
11 Connecting instrument cluster electrical plug connection Plug in the electrical plug connection of the instrument mount. After inserting the plug connection -18-direction of the arrow-  . See Fig 3 .
12 Installing instrument mount Install the hazard warning light switch -13-14-4-16-12-17-  . See Fig 3 .
13 Installing the loudspeaker Connect electrical plug connection -11-9-  . See Fig 3 .
14 Installing the alarm readiness unit Connect the plug connection. Secure the alarm readiness unit-8-7-  . See Fig 3 .
15 Installing the alarm readiness cover and the defroster cover Clip the defroster covers on the left and right -5, 6-4-3-8-4-  . See Fig 3 .
