Installing the cigarette lighter

Press the illumination ring with the cigarette lighter -C- into the front cover from the front. See Fig 1 .
Clip the lights bracket -B- into place. Ensure that the locking tabs have engaged. See Fig 1 .
Engage cover -A- . Ensure that the locking tabs have engaged. See Fig 1 .

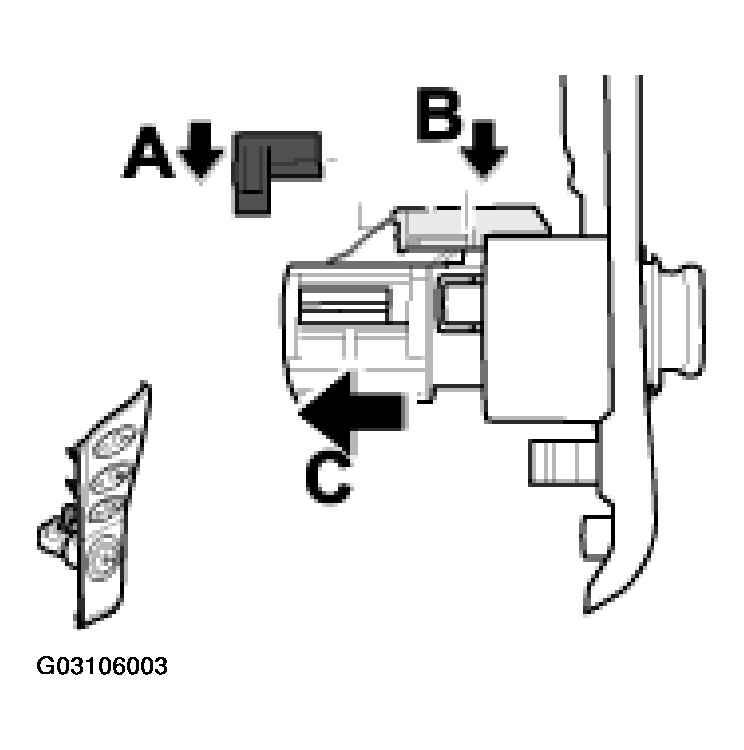

Fig 1: Installing Cigarette Lighter (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
