Overview of tools and materials

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

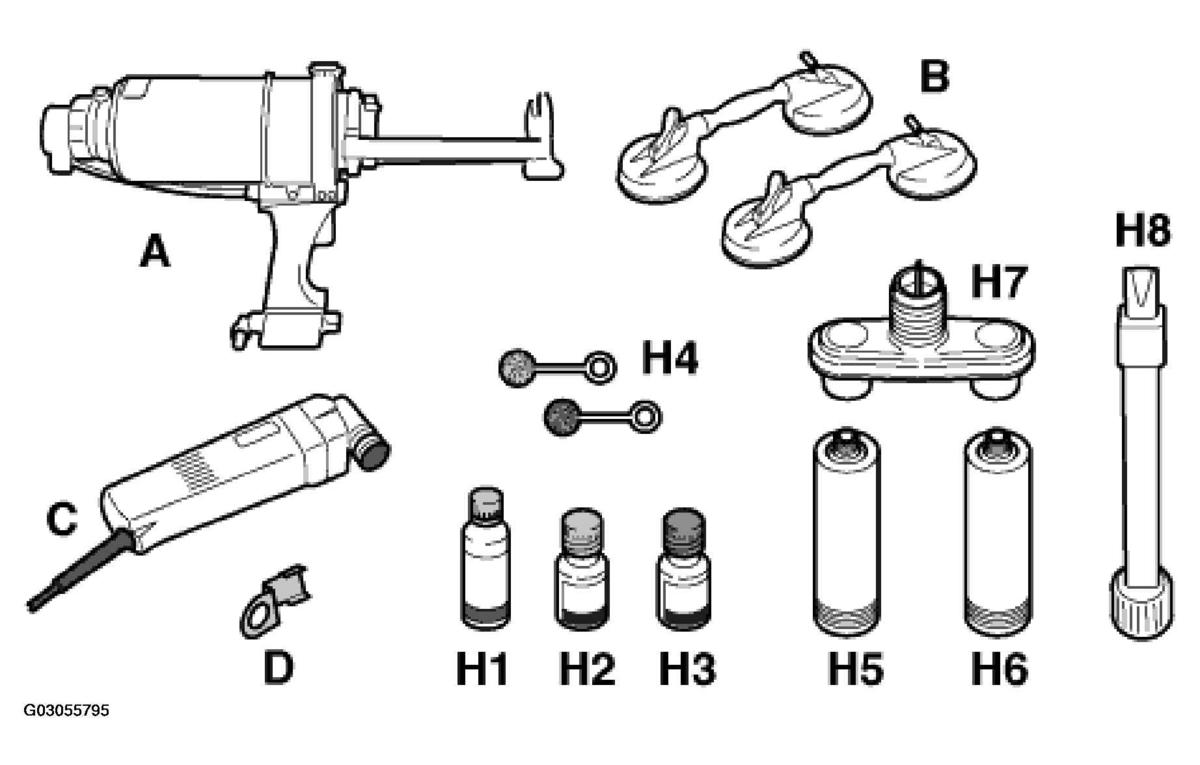

Fig 1: Overview Of Windscreen Tools And Materials (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WINDSCREEN TOOLS AND MATERIALS DESCRIPTION (A, B, C, D, H)

WINDSCREEN TOOLS AND MATERIALS DESCRIPTION (H)

Item	Designation	Item	Designation
-H1- . See Fig 1 .	Cleaning solution	-H5- . See Fig 1 .	Cartridge, component A
-H2- . See Fig 1 .	Primer	-H6- . See Fig 1 .	Cartridge, component B
-H3- . See Fig 1 .	Activator	-H7- . See Fig 1 .	Mixing nozzle
-H4- . See Fig 1 .	Swab	-H8- . See Fig 1 .	Processing nozzle

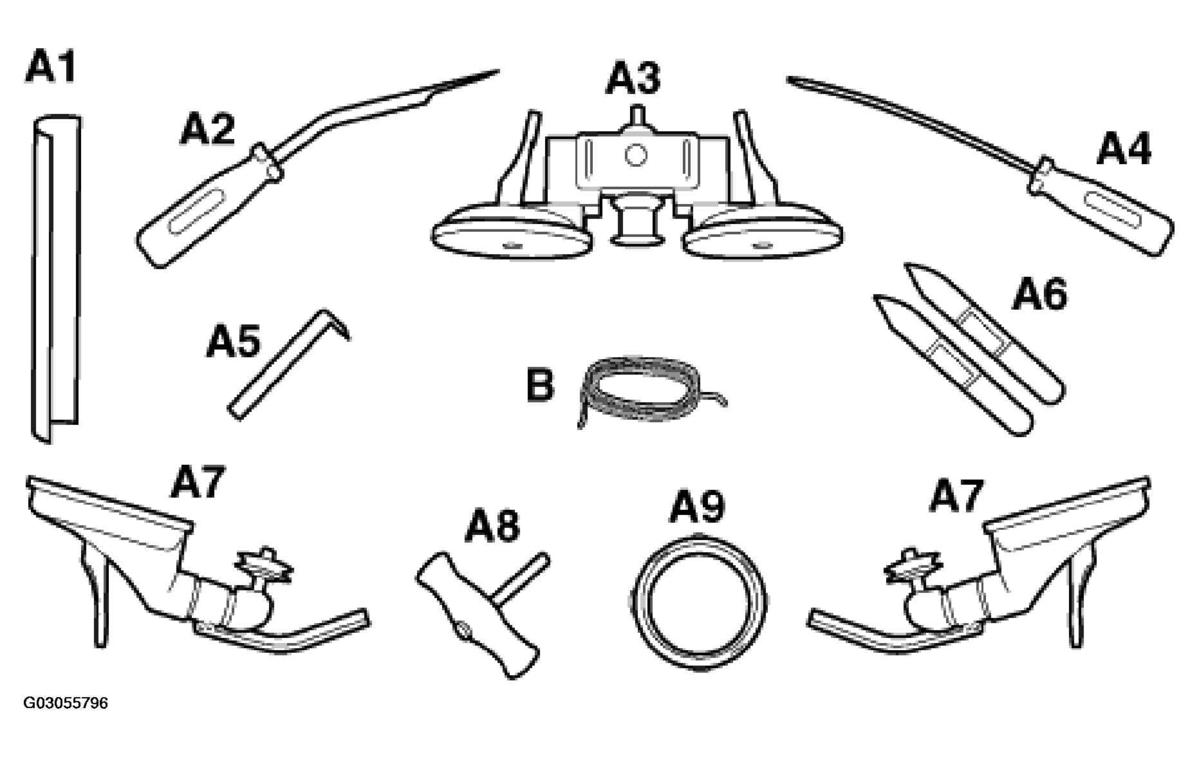

Fig 2: Overview Of Windscreen Tools And Materials (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WINDSCREEN TOOLS AND MATERIALS DESCRIPTION (A, B)

Item	Designation	Source	Remarks
-A- . See Fig 2 .			Contains set components A1-A9
-B- . See Fig 2 .

WINDSCREEN TOOLS AND MATERIALS DESCRIPTION (A)

Item	Designation	Item	Designation
-A1- . See Fig 2 .	Guide rails	-A6- . See Fig 2 .	Filler
-A2- . See Fig 2 .	Cutting tool (wire holder)	-A7- . See Fig 2 .	Steering roller with arm bracket
-A3- . See Fig 2 .	Spooling device	-A8- . See Fig 2 .	Handle
-A4- . See Fig 2 .	Awl	-A9- . See Fig 2 .	Square cutting wire
-A5- . See Fig 2 .	Guide rails
