Removing side window

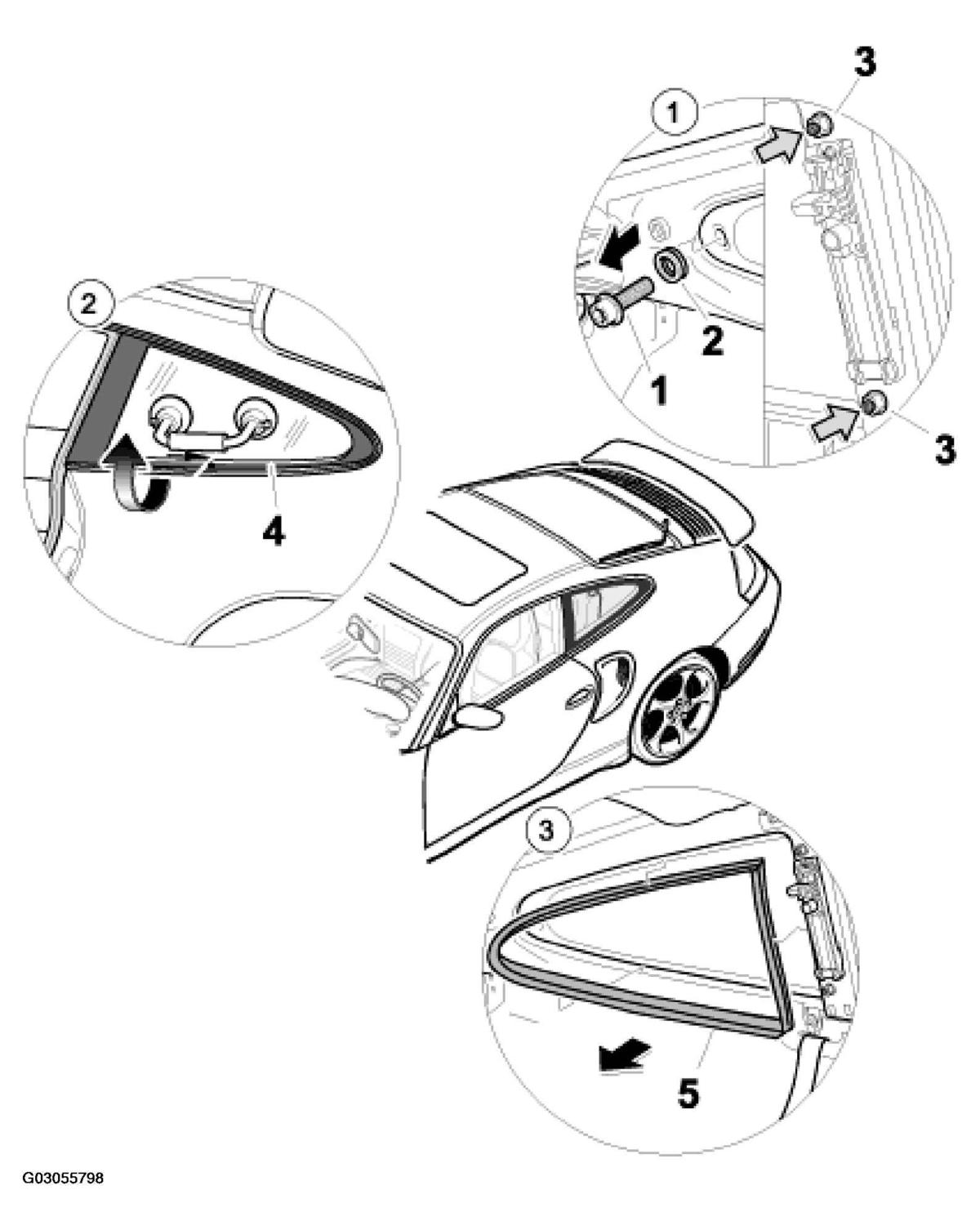

Fig 1: Removing Side Window Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE WINDOW COMPONENTS REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing B and C pillars	Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS, - AS OF MY 1997 .
1	Unscrew fastening nuts and screws.	Unscrew the fastening screw -1-2-3- . See Fig 1 .
2	Remove side window.	Pull out side windows -4-in direction of arrow- . See Fig 1 .
3	Pull off the rubber seal	Pull off rubber seal -5- . See Fig 1 .
	Removing the side window seal and retaining strip, see:	See REMOVING SIDE WINDOW SEAL .
