Removing side window seal: Notes

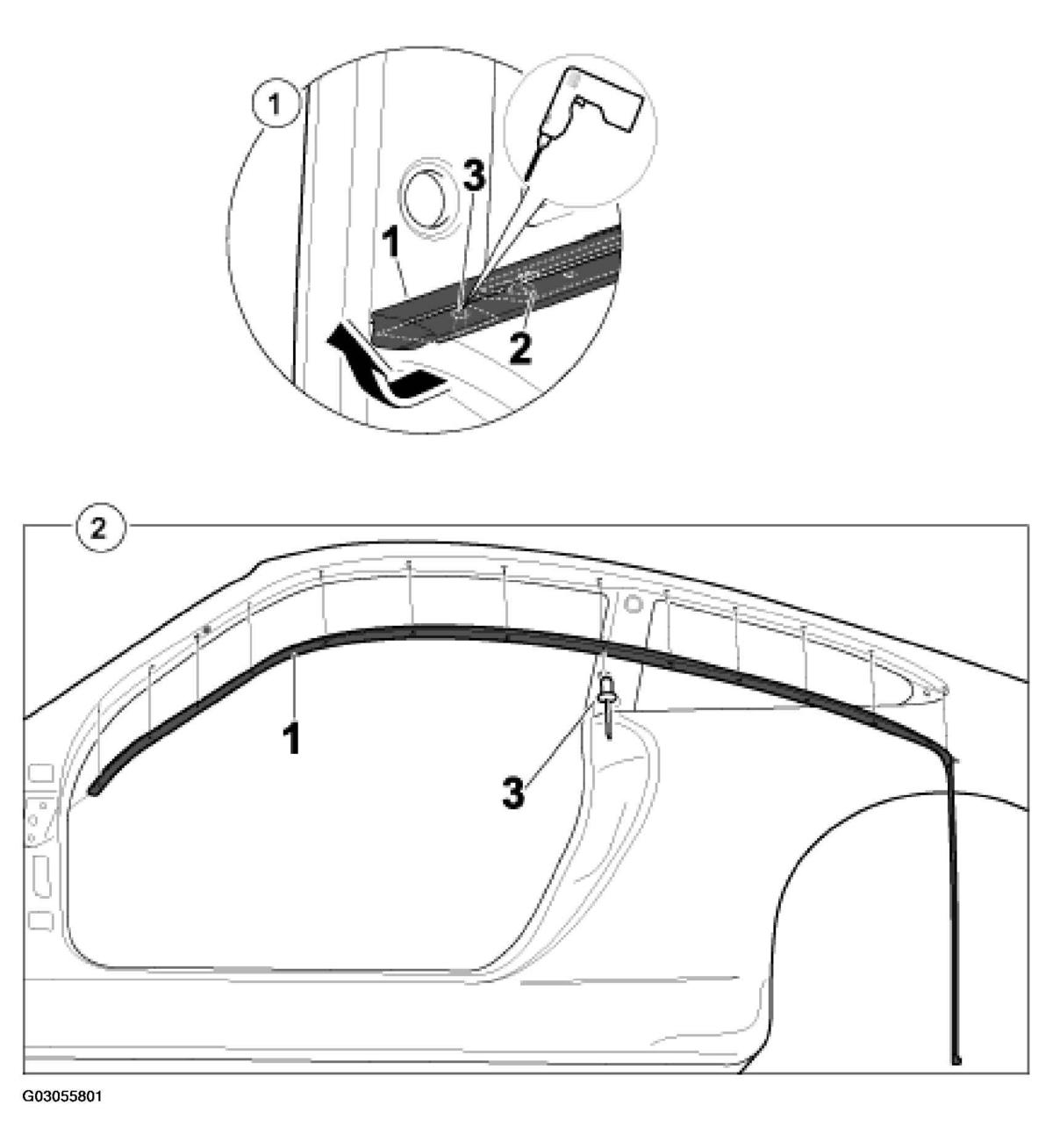

Fig 1: Removing Side Window Seal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE WINDOW SEAL COMPONENTS REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing side window	See Removing side window .
1	Removing side window seal	Bore out pop rivet from the integrated sheet metal strip of the side window seal -1-1-direction of the arrow-2- . See Fig 1 .
2	Boring out side window seal	Bore out the pop rivets -3-1- . See Fig 1 .
	Removing the retaining strip
