Installing side window seal: Notes

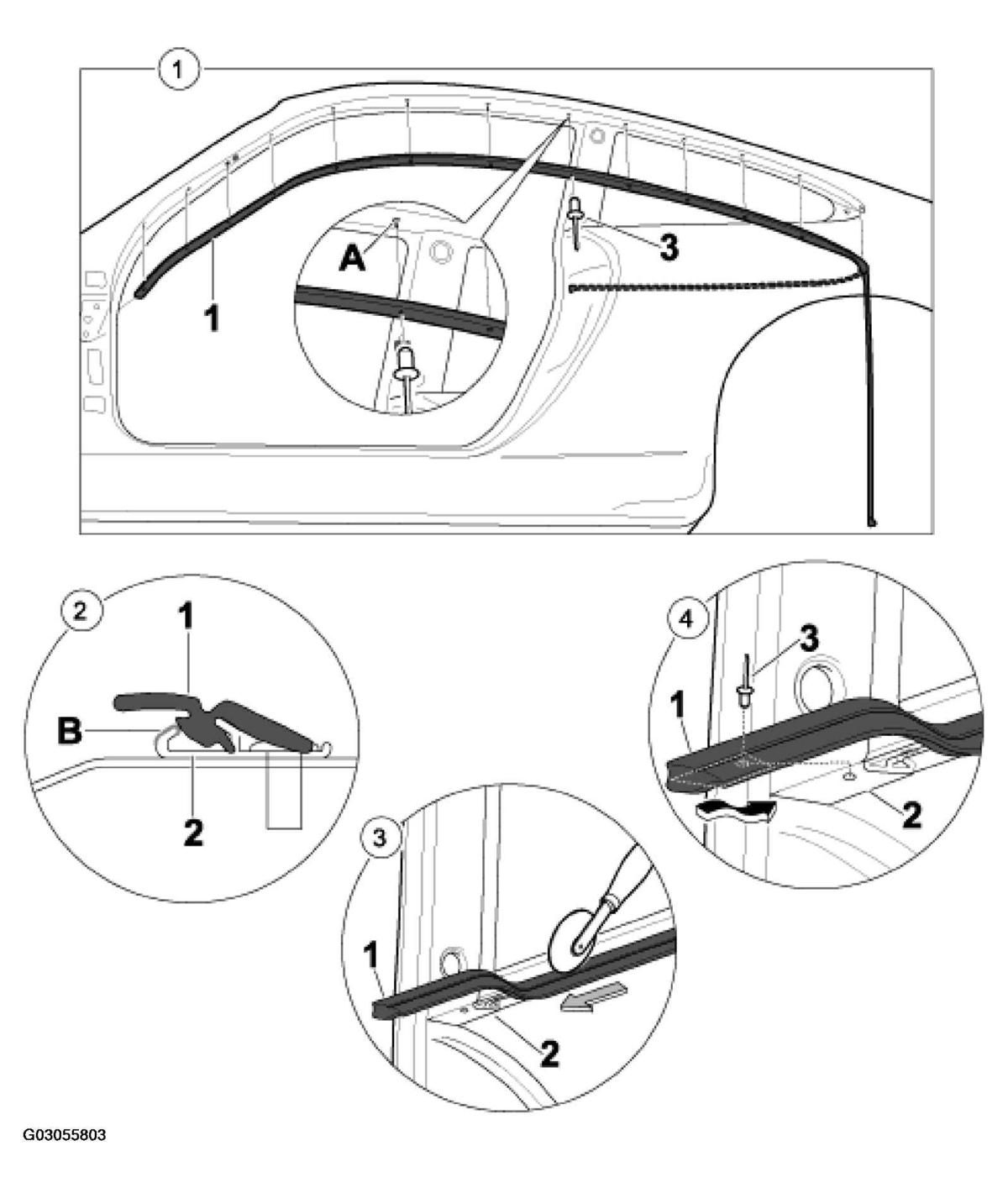

Fig 1: Installing Side Window Seal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE WINDOW SEAL COMPONENTS INSTALLING PROCEDURE

No.	Procedure	Instructions
	Installing the retaining strip
1	Riveting down the side window seal to the body	Position the side window seal -1-A-3- . See Fig 1 .
2	Positioning the side window seal in the retaining strip	Coat the retaining strip -2-1-2- . See Fig 1 .
3	Fitting the side window seal in the retaining strip	Starting from the rear, fit the side window seal -1-direction of arrow-2- . See Fig 1 .
4	Riveting down the side window seal	Position the integrated sheet metal strip of the side window seal -1-3- . See Fig 1 .
	Installing side window.	See INSTALLING SIDE WINDOW .
