Removing rear window cover
Courtesy of PORSCHE OF NORTH AMERICA, INC. REAR WINDOW COVER COMPONENTS REMOVING PROCEDURE (TARGA)
| No. |
Procedure |
Instructions |
| 1 |
Removing pneumatic spring |
Press out the fuse -1-2-

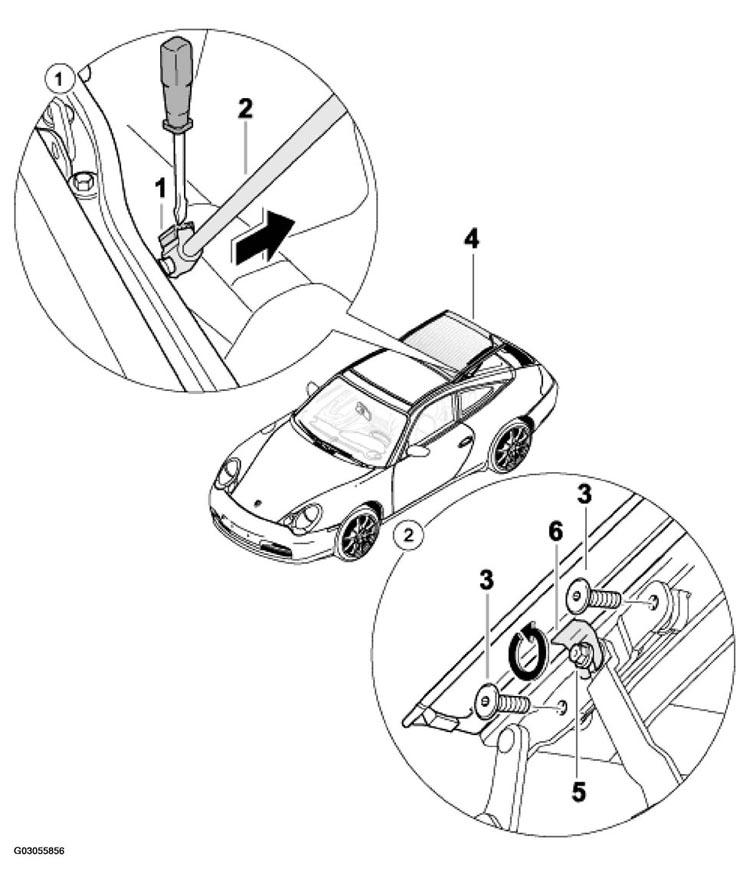

. See Fig 1
. |
| 2 |
Unscrewing fastening screws |
Unscrew the fastening screws -3-4-5-4-6-
. See Fig 1
. |
