Overview of tools and materials

The following tools and materials are required for removal and installation of the rear window with two-component adhesive:

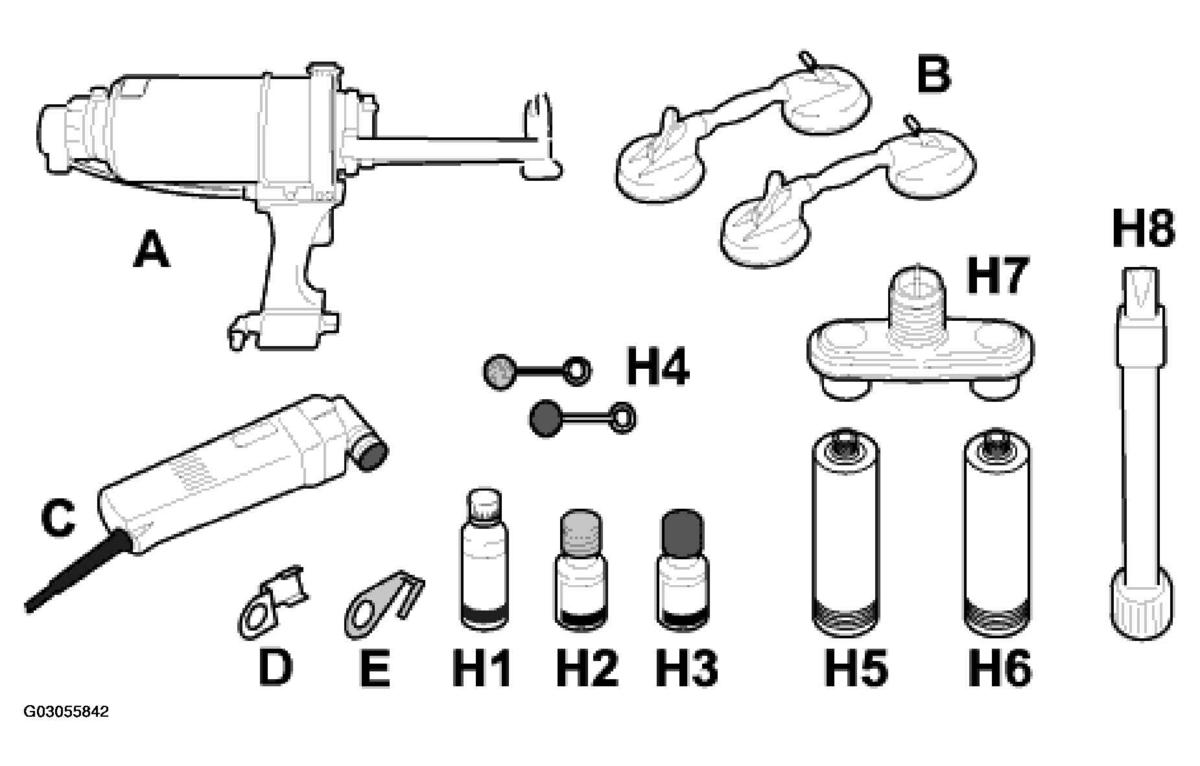

Fig 1: Overview Of Rear Window (Hardtop) Tools And Materials
G03055842Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR WINDOW (HARDTOP) TOOLS AND MATERIAL DESCRIPTION (A, B, C, D, E, H)

Item Designation Source Remarks
-A-  . See Fig 1 .
-B-  . See Fig 1 .
-C-  . See Fig 1 .
-D-  . See Fig 1 .
-E-  . See Fig 1 .
-H-  . See Fig 1 .     Contains set components H1-H8
REAR WINDOW (HARDTOP) TOOLS AND MATERIAL DESCRIPTION (H)

Item Designation Item Designation
-H1-  . See Fig 1 . Cleaning solution -H5-  . See Fig 1 . Cartridge, component A
+H2-  . See Fig 1 . Primer -H6-  . See Fig 1 . Cartridge, component B
+H3-  . See Fig 1 . Activator +H7-  . See Fig 1 . Mixing nozzle
+H4-  . See Fig 1 . Swab -H8-  . See Fig 1 . Processing nozzle
