Removing power window motor

  1. Close door window.
    WARNING: Airbag could inflate. Possible danger of injury or damage during fitting
    • 1. Remove ignition key.
    • 2. Disconnect and cover the negative terminal of the battery.
    • 3. After the battery is disconnected, work on the vehicle may only be started after a waiting period of 1 minute.
  2. Remove door panel and loudspeaker unit. Carefully remove (do not crack) the front moulded foam part from the inside of the door near the power window motor and the loudspeaker cut-out. See also: REMOVING AND INSTALLING DOOR TRIM PANEL, - AS OF MY 1997 .
  3. Loosen the three M6 fastening nuts -arrows-  from the power window motor.

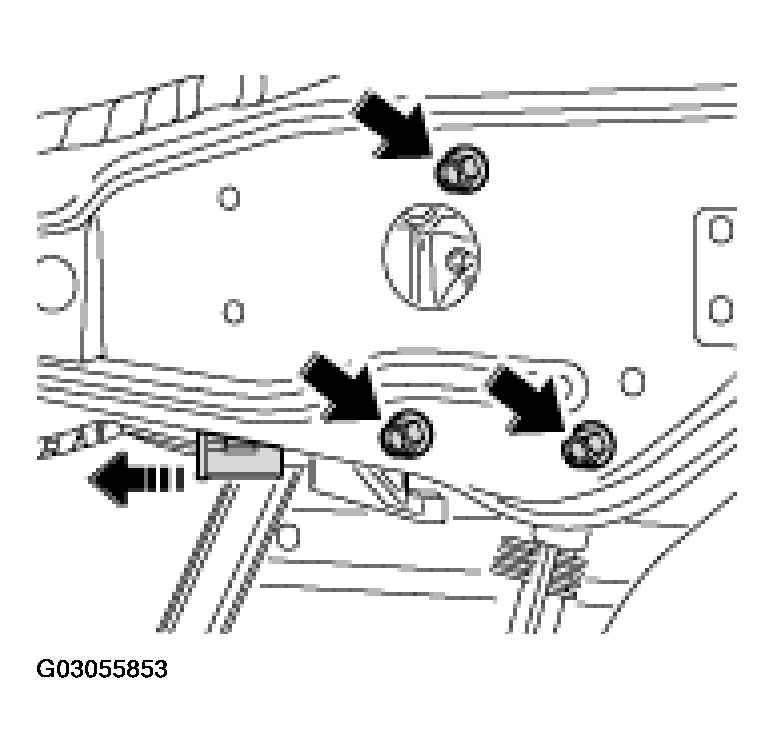

    4. Fig 1: Loosening Fastening Nuts For Removing Power Window Motor
    G03055853Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Press the power window unit out of the inner door panel until the fastening pins are free.
  5. Unlock and remove the electrical plug connection -Pfeil-  on both sides.
  6. Unscrew fastening pins of power window motor. Remove power window unit from the toothing and take out through the loudspeaker cut-out.
