Removing closing aid

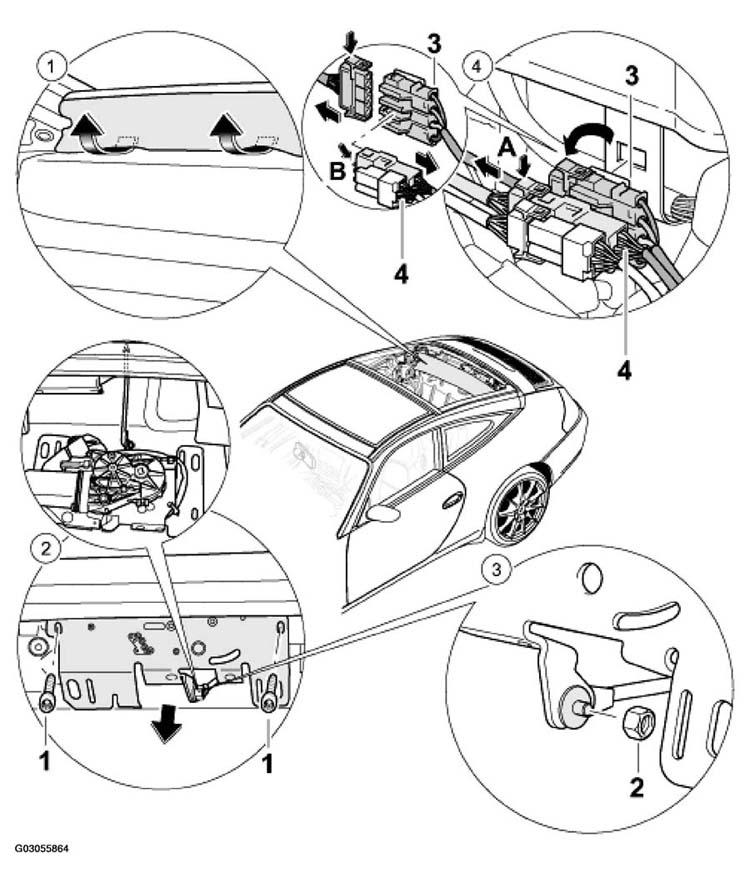

Fig 1: Removing Closing Aid Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CLOSING AID COMPONENTS REMOVING PROCEDURE (TARGA)

No.	Procedure	Instructions
1	Removing rear wall lining	Hold rear cover at the side underneath and carefully pull out of the clips in the -direction of arrow- . See Fig 1 .
2	Folding closing aid over	Unscrew the fastening screws -1-inset- . See Fig 1 .
3	Unscrewing support strut	Undo hexagon nut -2- . See Fig 1 .
4	Undoing microswitch plug connection	Turn the plug unit -arrow-3-4-A-arrow B-4-3- . See Fig 1 .
