Headlight without lens

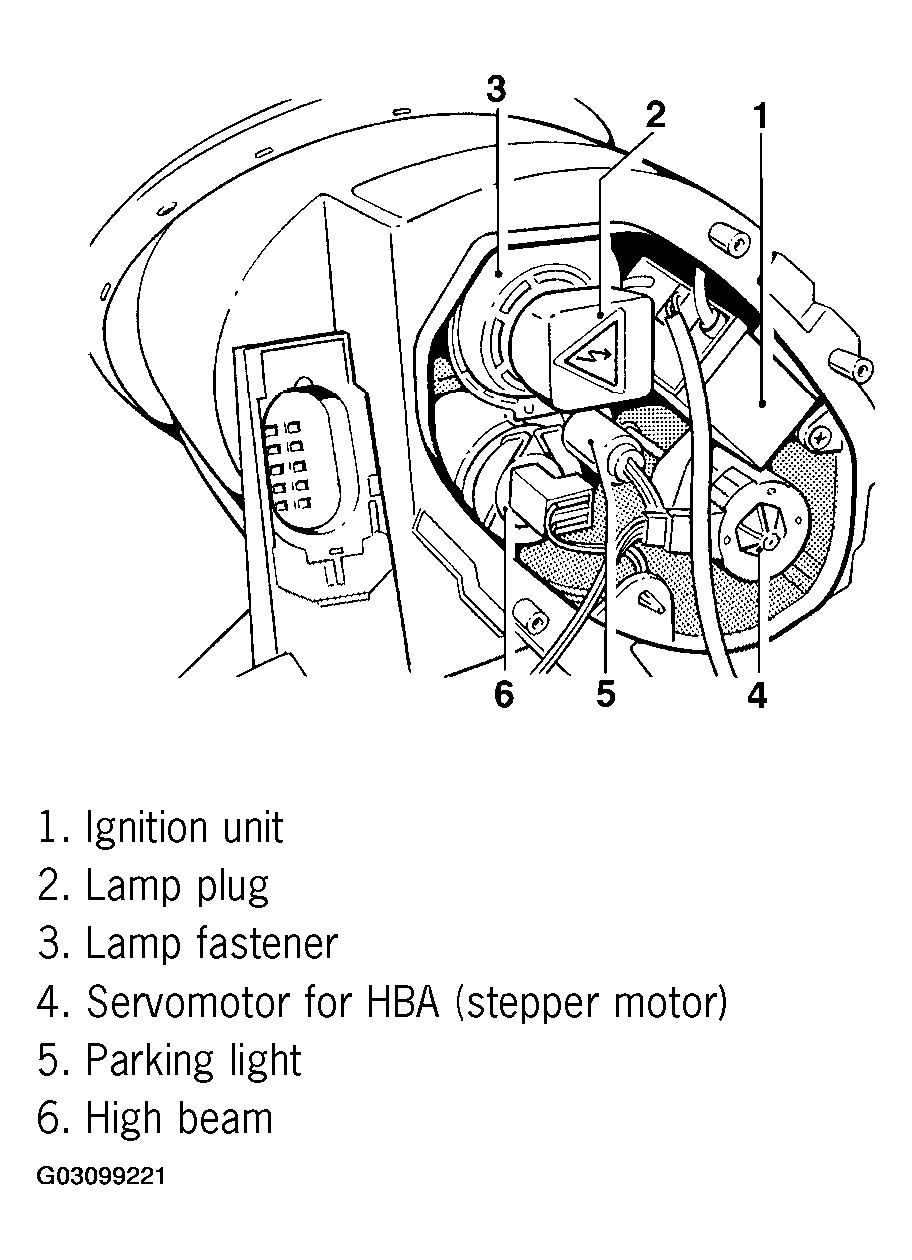

Fig 1: Identifying Components Of Headlight Without Lens
G03099221Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Ignition unit
  2. Lamp plug
  3. Lamp fastener
  4. Servomotor for HBA (stepper motor)
  5. Parking light
  6. High beam
