Exterior Lights, Lamps, Switches Diagnosis - 911 CARRERA (996)
>>
System LWR 01
>>
Connector assignment
Connector assignment

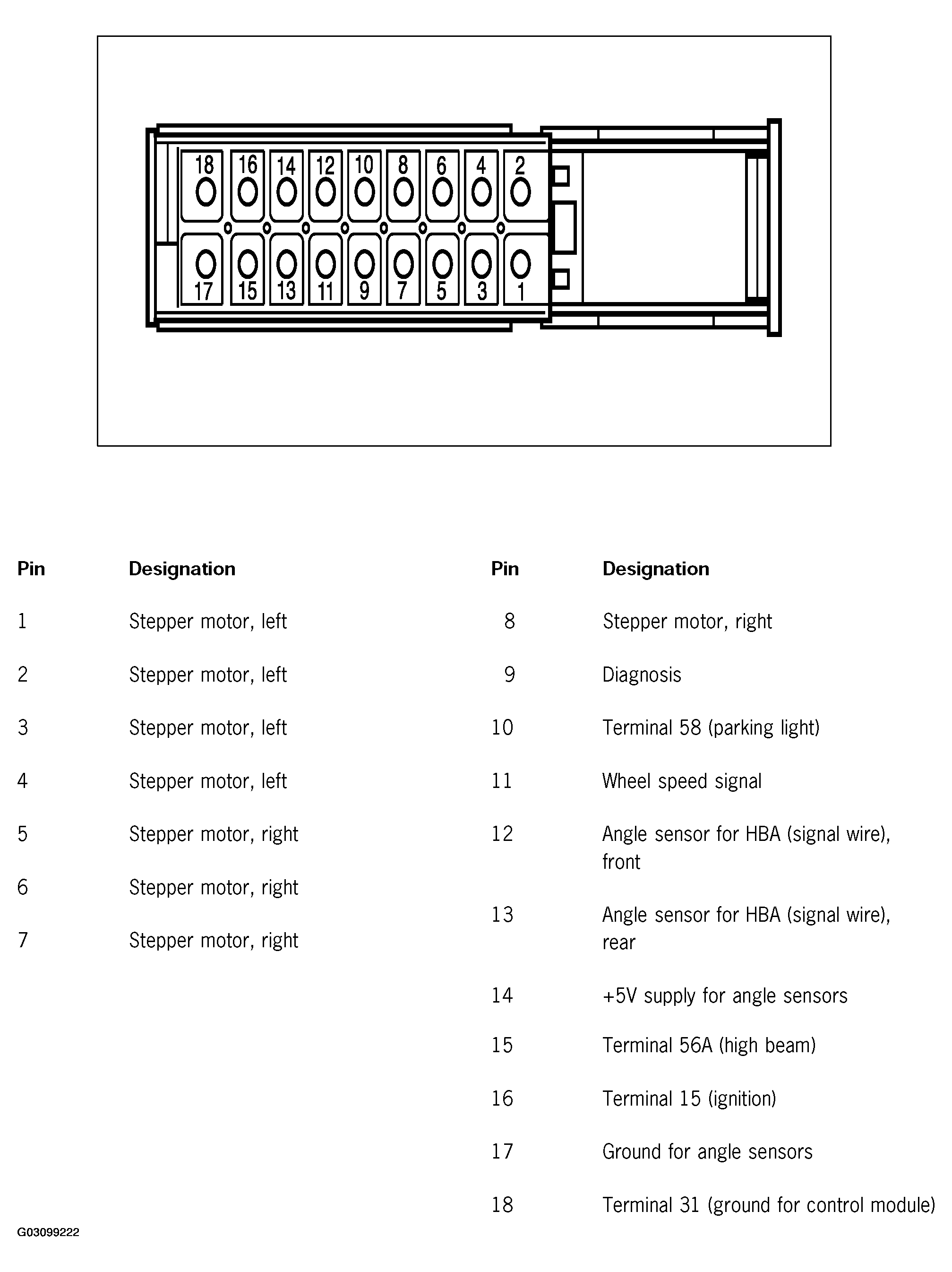

Fig 1: Identifying Headlight Beam Adjustment (HBA) Control Module Connector Pin Terminals
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
