Removing the loudspeaker amplifier

Before removing the amplifier, take out the ignition key and switch off the audio system.

Open the luggage-compartment lid and if present, detach the additional amplifier on the clip -1- and detach the additional amplifier (in the direction of travel) to the right.

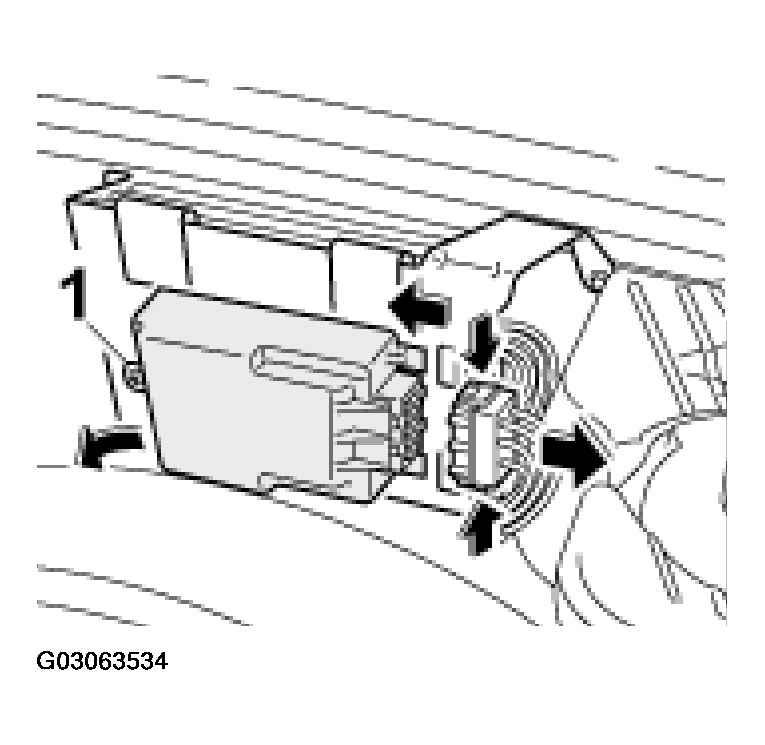

Fig 1: Detaching Clip & Loudspeaker Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press connectors -arrow- together and pull apart. Remove additional amplifier. See Fig 1 .
Unscrew both fastening screws from the retaining bracket.

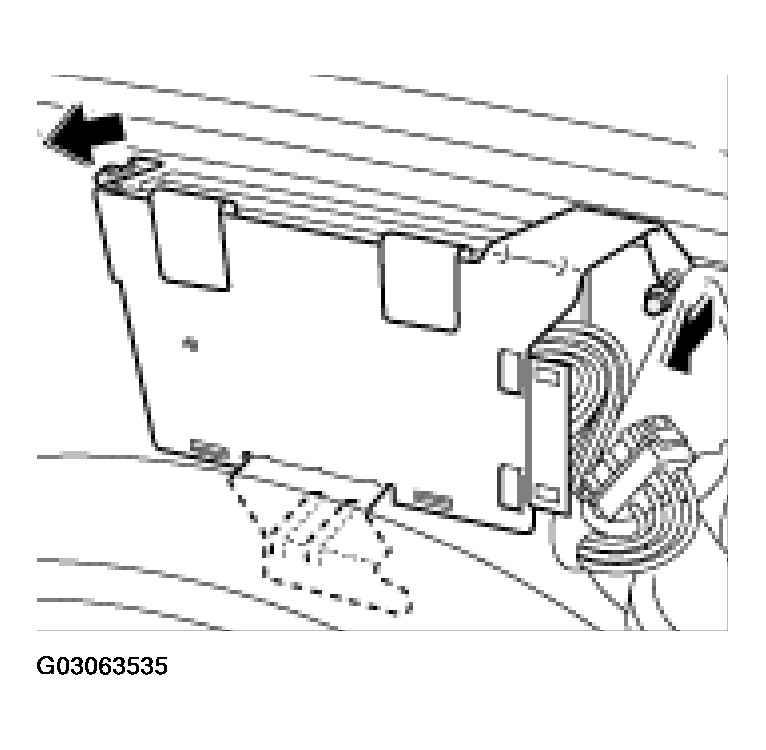

Fig 2: Removing Fastening Screws From Loudspeaker Retaining Bracket
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Bose amplifier:
Unplug both electrical connectors -arrow- .

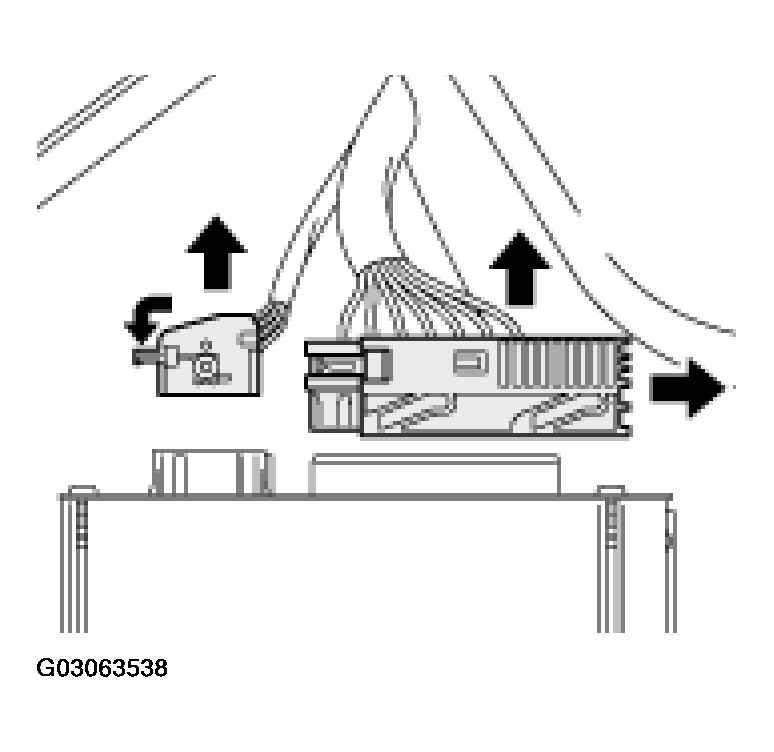

Fig 3: Removing Bose Amplifier Electrical Connectors
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Harman amplifier:
Remove the cover for the electrical connector.

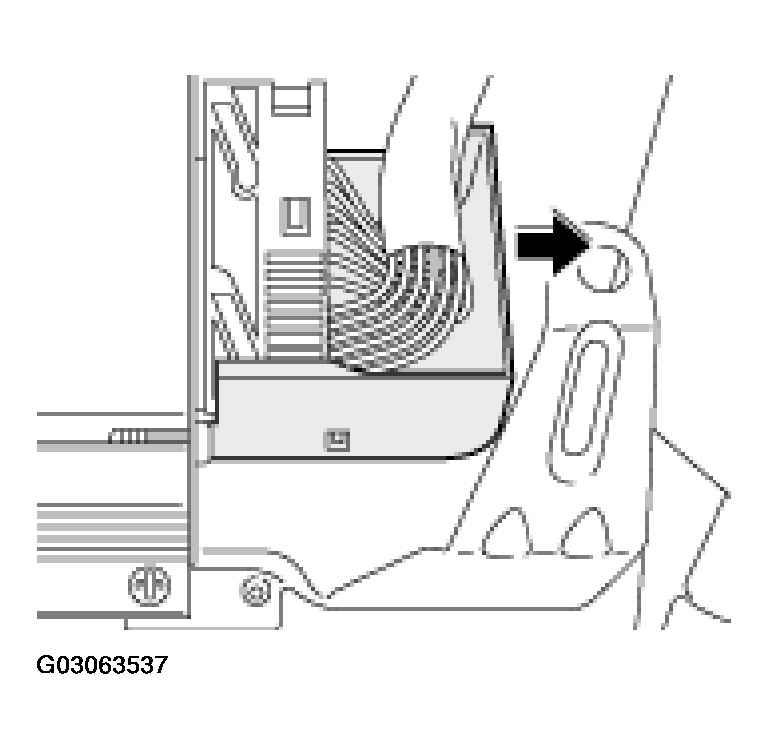

Fig 4: Removing Electrical Connector Cover - Harman Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Harman amplifier:
Unplug both electrical connectors -arrow- .

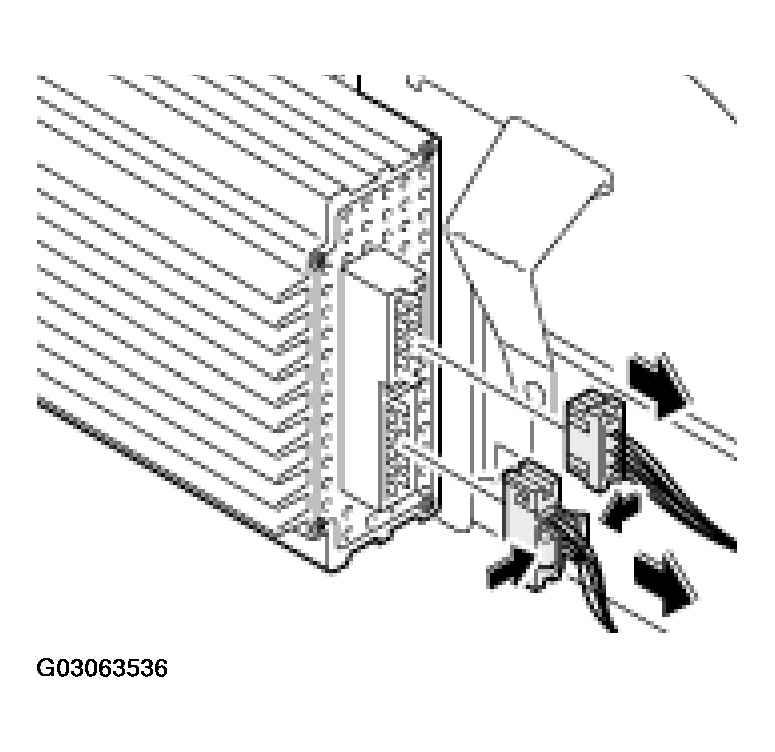

Fig 5: Removing Harman Amplifier Electrical Connectors

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Unscrew both fastening screws and pull the amplifier from the fastening clips.

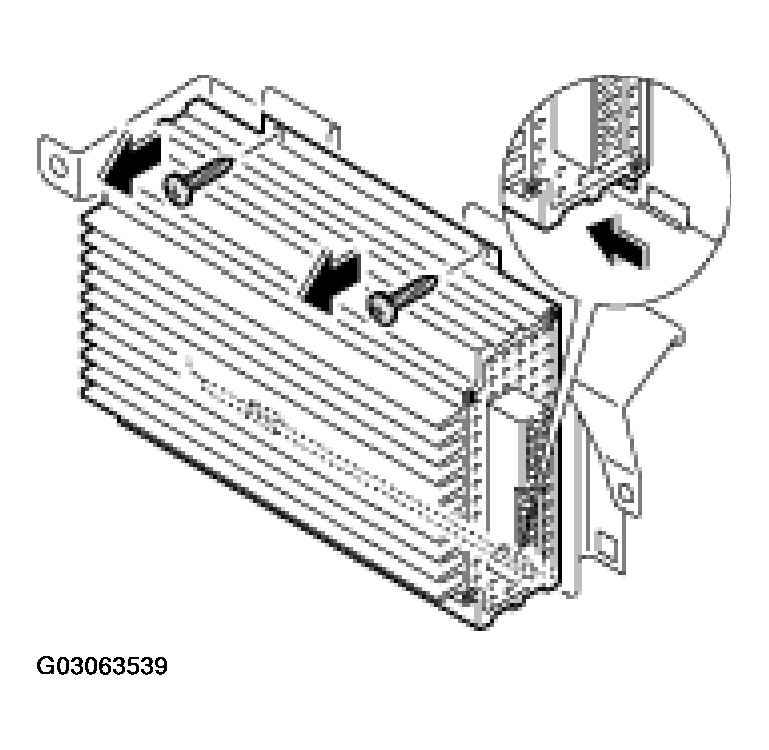

Fig 6: Removing Harman Amplifier & Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
