Installing the car radio

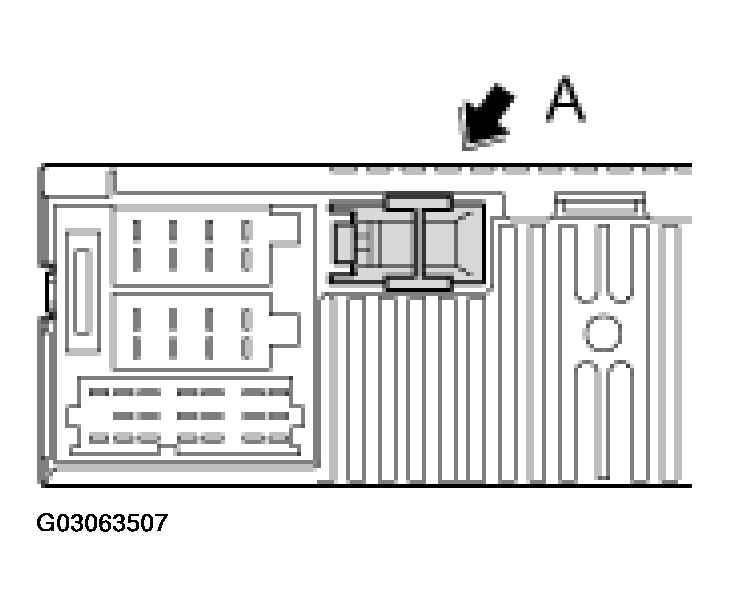

Before the new car radio is installed, release and unplug the protective plug -A- for the optical waveguide.

Fig 1: Unplugging Protective Plug For The Optical Waveguide
Courtesy of PORSCHE OF NORTH AMERICA, INC.

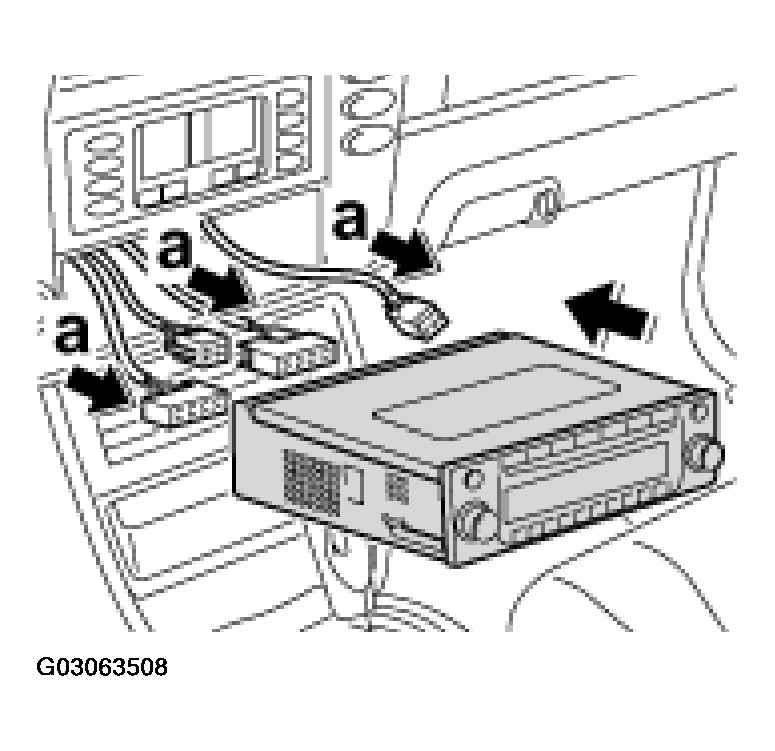

Press in electrical plug and the optical waveguide plug on car radio until it is felt to engage -a- .

Fig 2: Engaging Electrical Plug & Optical Waveguide On Car Radio
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Before the car radio is inserted into the installation slot, it must be ensured that the electrical lines are not squeezed and damaged by the car radio.
Push the car radio into the installation slot until the locking elements on the radio housing engage.
