Installing subwoofer

NOTE: State of the insulating mat between subwoofer and floor pan. Insulating mat must cover floor pan.

Insert the plug until it engages.

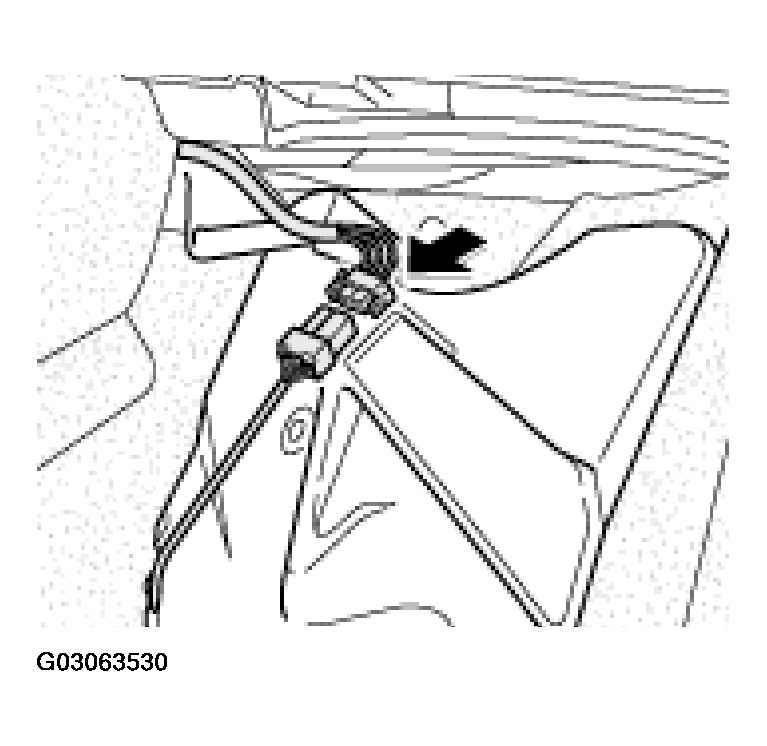

Fig 1: Installing Subwoofer Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert peg -2- of subwoofer into the floor pan and press subwoofer against the centre console.

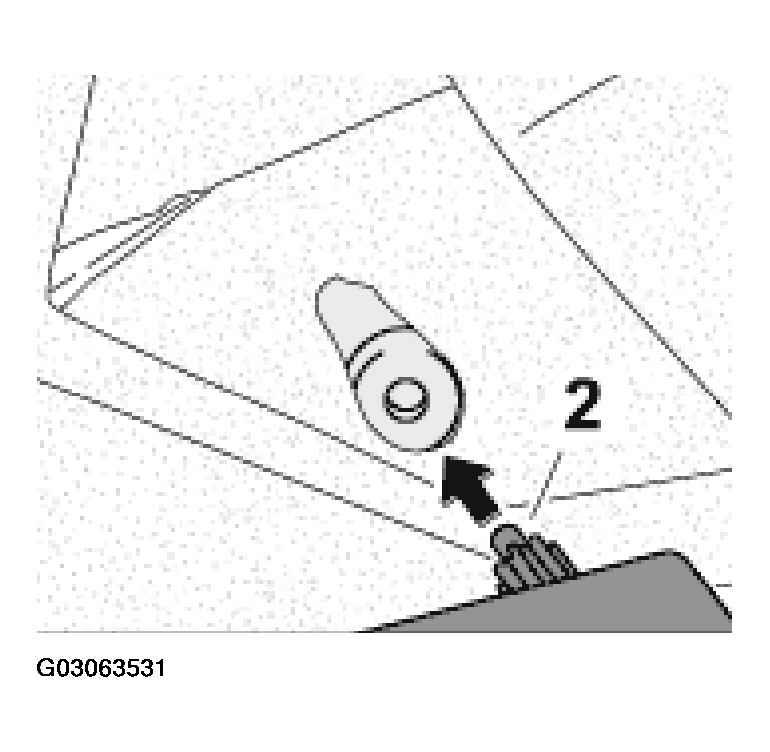

Fig 2: Inserting Peg Of Subwoofer Into Floor Pan
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Make sure that the vent -3- is routed above the subwoofer.

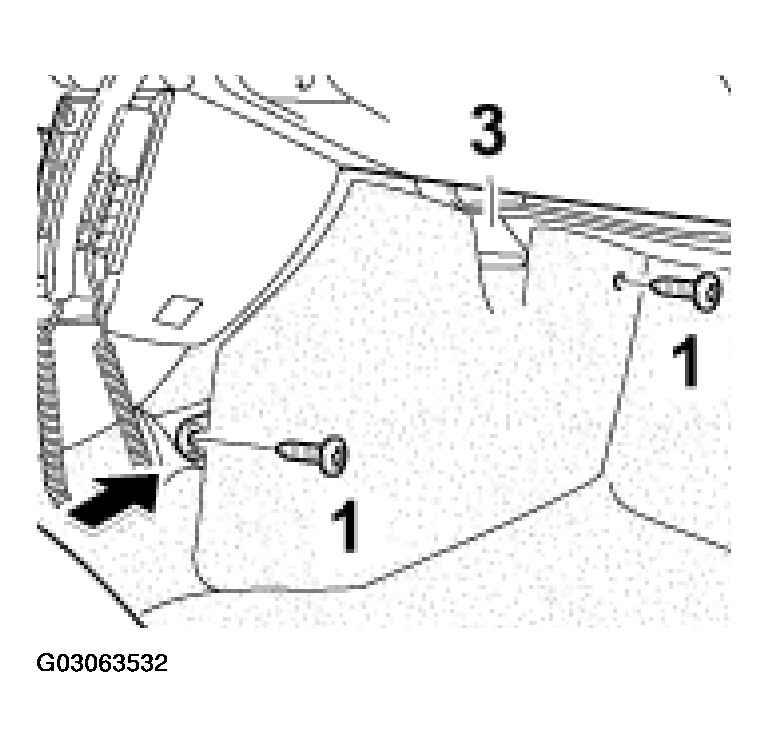

Fig 3: Installing Vent Above Subwoofer
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Screw in and tighten both fastening screws -1- . See Fig 3 . Tightening torque 7.2 Nm (5.5 ftlb.).
Push carpet lining -arrow- behind the subwoofer. See Fig 3 .
