Installing rear loudspeakers

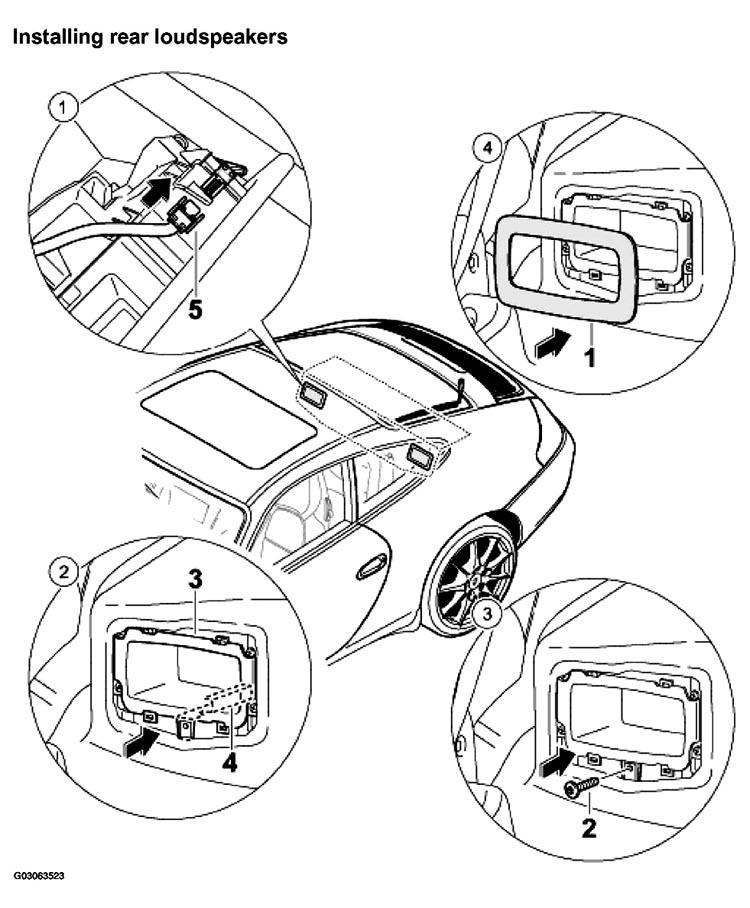

Fig 1: Installing Rear Loudspeakers Components
G03063523Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR LOUDSPEAKERS INSTALLATION PROCEDURE

No. Procedure Instructions
1 Engaging the plug connection Push in the plug connection -5-  . See Fig 1 .
2 Installing the sound package Push the sound package -3-4-  . See Fig 1 .
3 Fastening the sound package Screw in the fastening screws -2-  . See Fig 1 .
4 Attaching the cover trim Position the cover trim -1-  . See Fig 1 .
