Removing control unit for telephone

  1. Unscrew the 4 fastening screws from the holder.

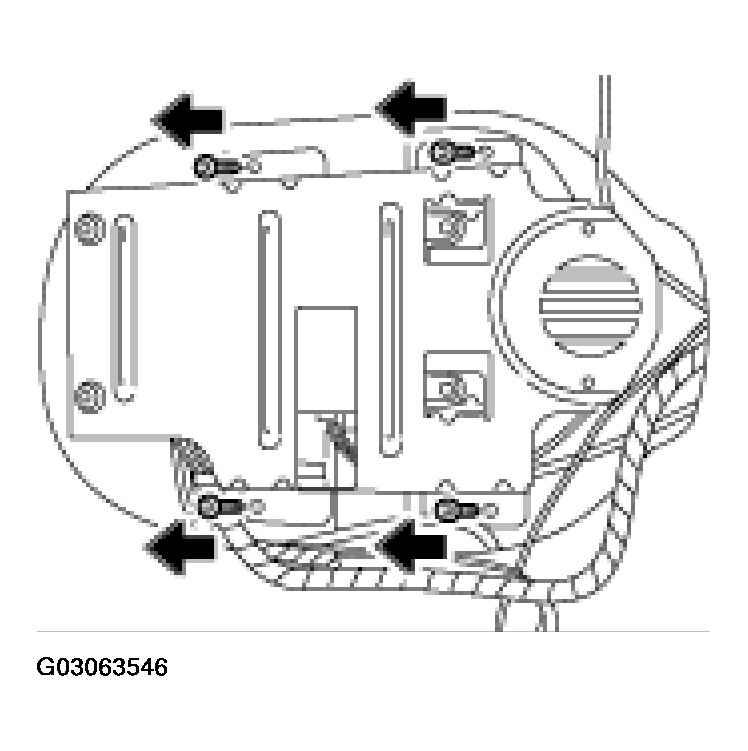

    Fig 1: Unscrewing Control Unit For Telephone Fastening Screws From Holder (As Of MY 2002)
    G03063546Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unscrew the two fastening screws on the holder and remove the control unit from the holder.

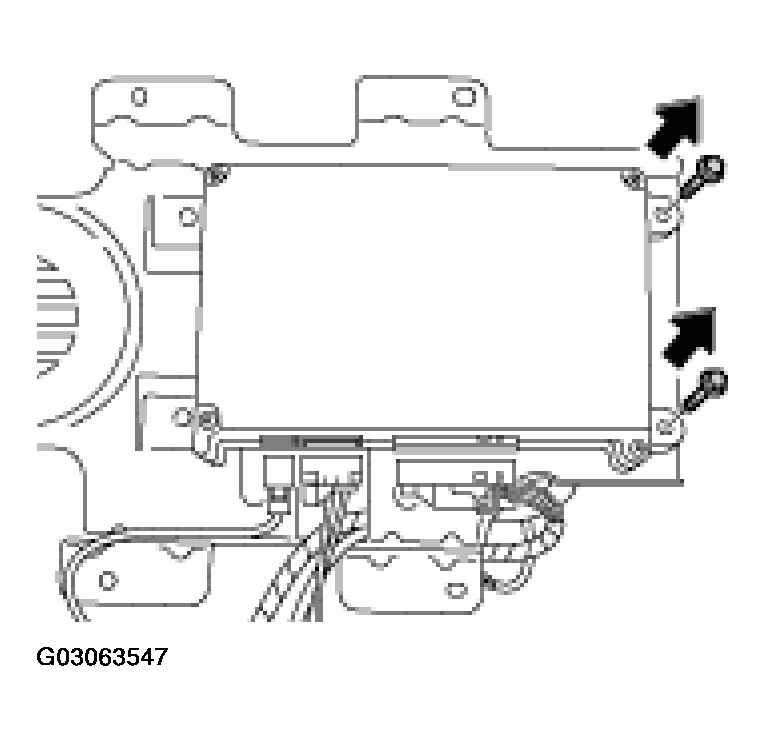

    Fig 2: Unscrewing Fastening Screws & Removing Control Unit For Telephone From Holder (As Of MY 2002)
    G03063547Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect the electrical plug connections.

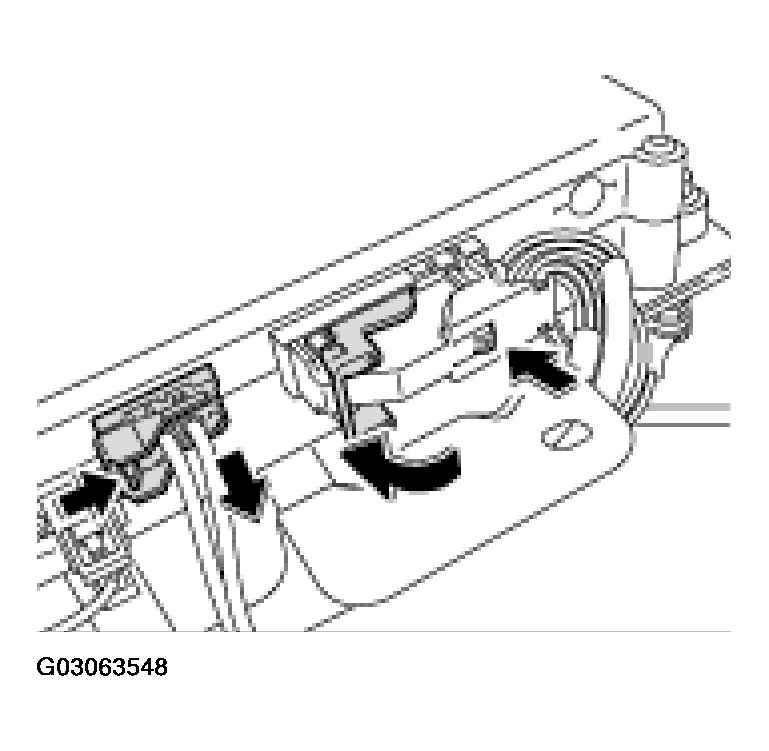

    Fig 3: Disconnecting Electrical Plug Connections (As Of MY 2002)
    G03063548Courtesy of PORSCHE OF NORTH AMERICA, INC.
