Installing control unit for the telephone

Connect the electrical plug connections on the control unit.

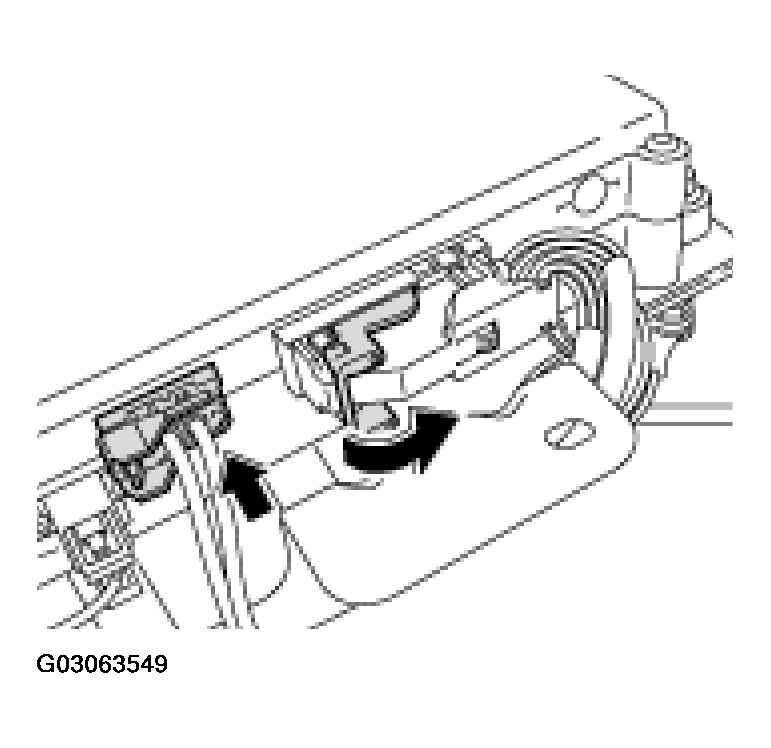

Fig 1: Connecting Electrical Plug Connections On Telephone Control Unit (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position control unit on the holder and screw it down with the fastening screws. Tightening torque 10 Nm (7.5 ftlb.).

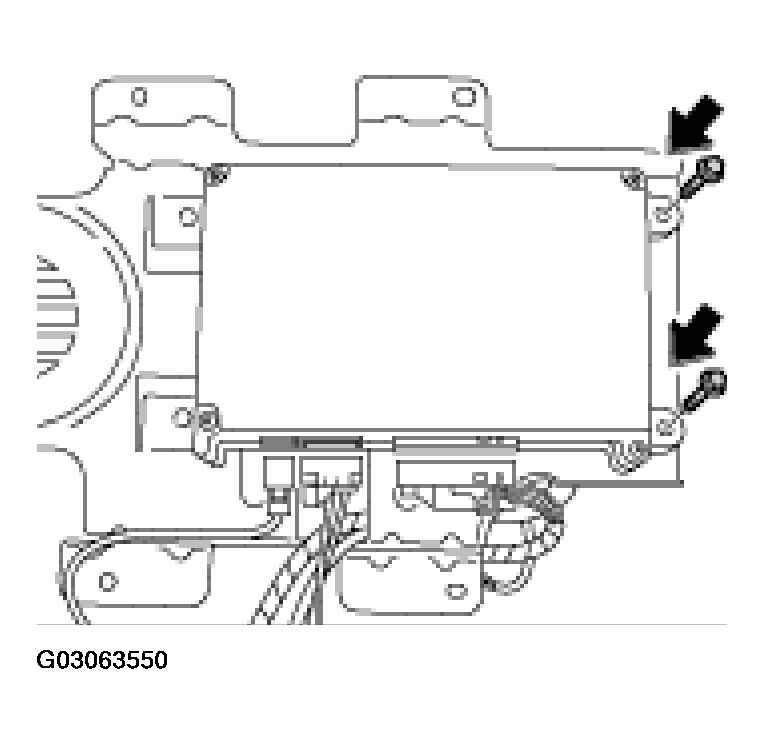

Fig 2: Positioning Telephone Control Unit On Holder & Screwing Down With Fastening Screws (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Lay the holder with the control unit on the floorpan and screw it down with the 4 fastening screws.

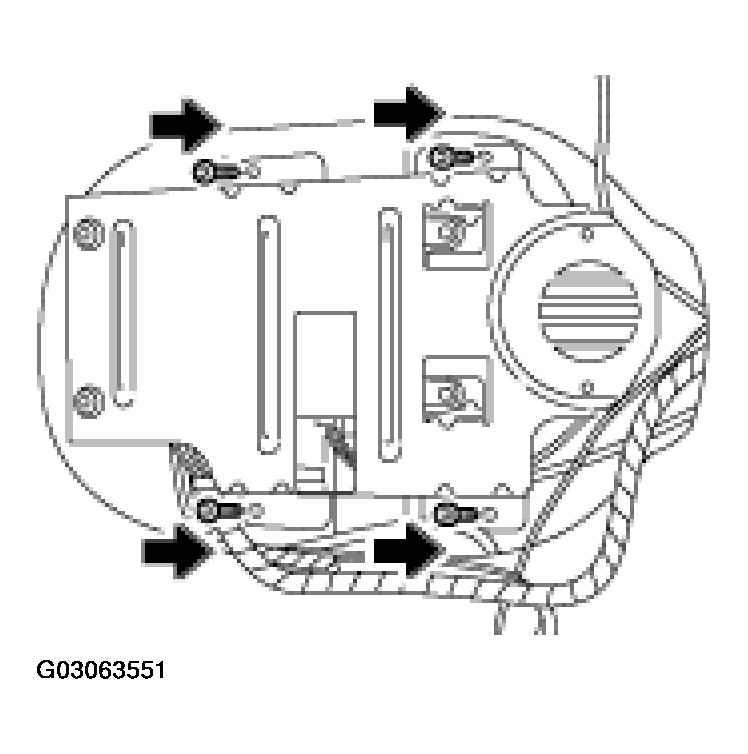

Fig 3: Installing Holder With Control Unit & Screws (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
