Removing the antenna amplifier

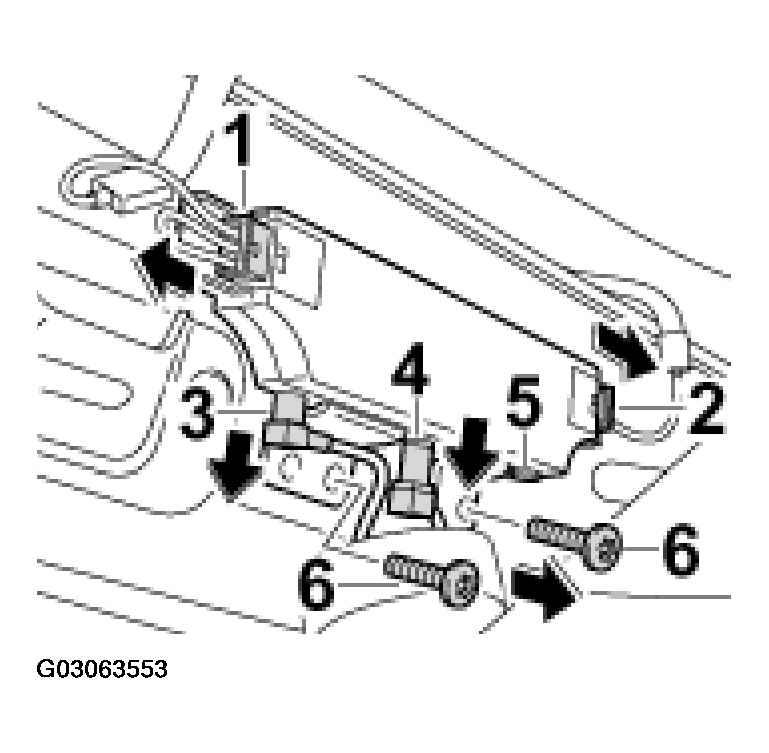

- Unplug the antenna plug for the windscreen -1-
and -2-
. See Fig 1
.
- Unplug the plug connections for the antenna control unit -3, 4-
on the left side, -3, 4, 5-
on the right side. See Fig 1
.
- Unscrew both fastening screws -6-
. See Fig 1
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
