Removing and installing GPS antenna: Removal

  1. Unclip cover from behind and take out.
  2. Undo both Torx T20 fastening screws with an angled screwdriver."WARNING" Fastening screws could fall out.

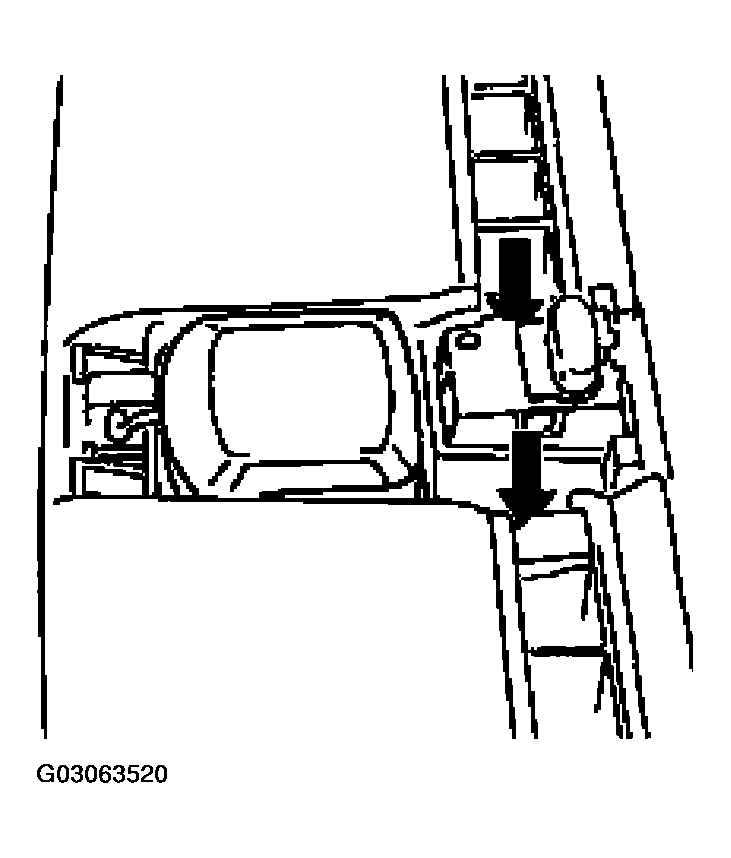

    Fig 1: Removing GPS Antenna Torx Fastening Screws
    G03063520Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove housing with GPS antenna, disconnect electrical plug connection on the bottom, and remove GPS antenna magnet).
