Removing subwoofer

  1. Pull out carpet lining -arrow-  .

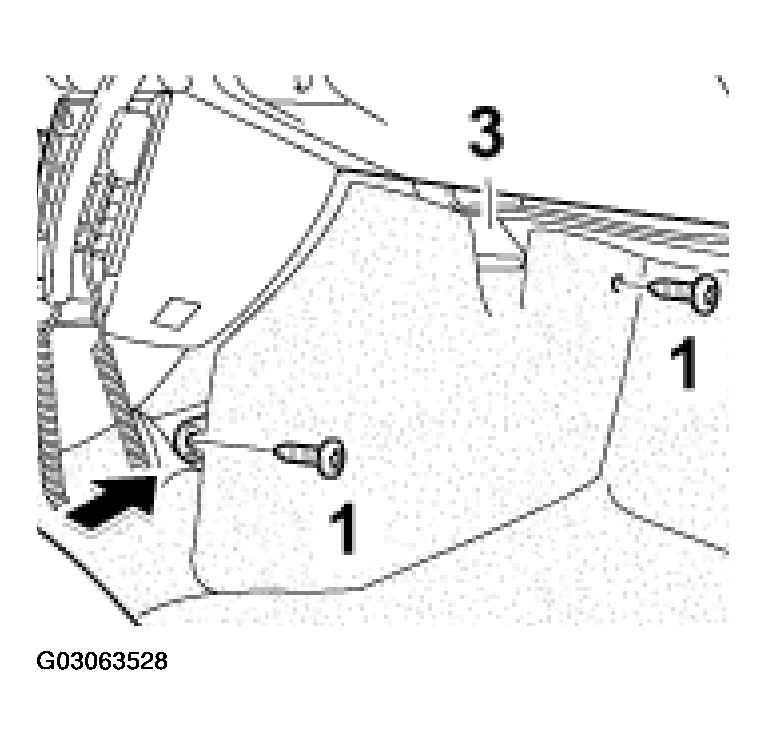

    Fig 1: Removing Carpet Lining
    G03063528Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Undo both fastening screws -1-  . See Fig 1 .
  3. Press subwoofer down slightly and reposition to the side in the footwell.
  4. Push connector together and remove.

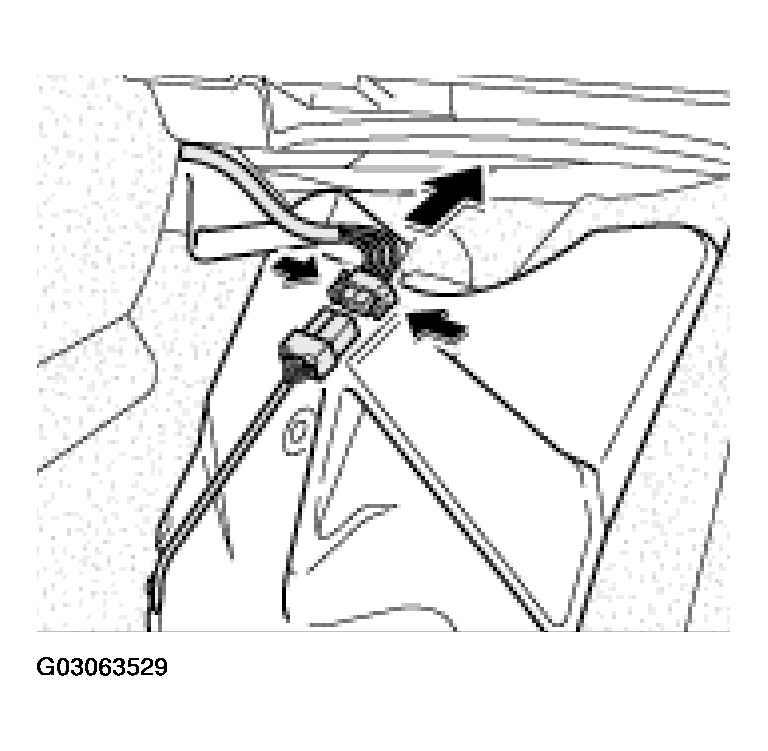

    Fig 2: Removing Subwoofer Connector
    G03063529Courtesy of PORSCHE OF NORTH AMERICA, INC.
