Installing control unit for alarm system
NOTE:
- Only install the control unit with the battery disconnected. See WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
CONTROL UNIT FOR ALARM SYSTEM INSTALLATION PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

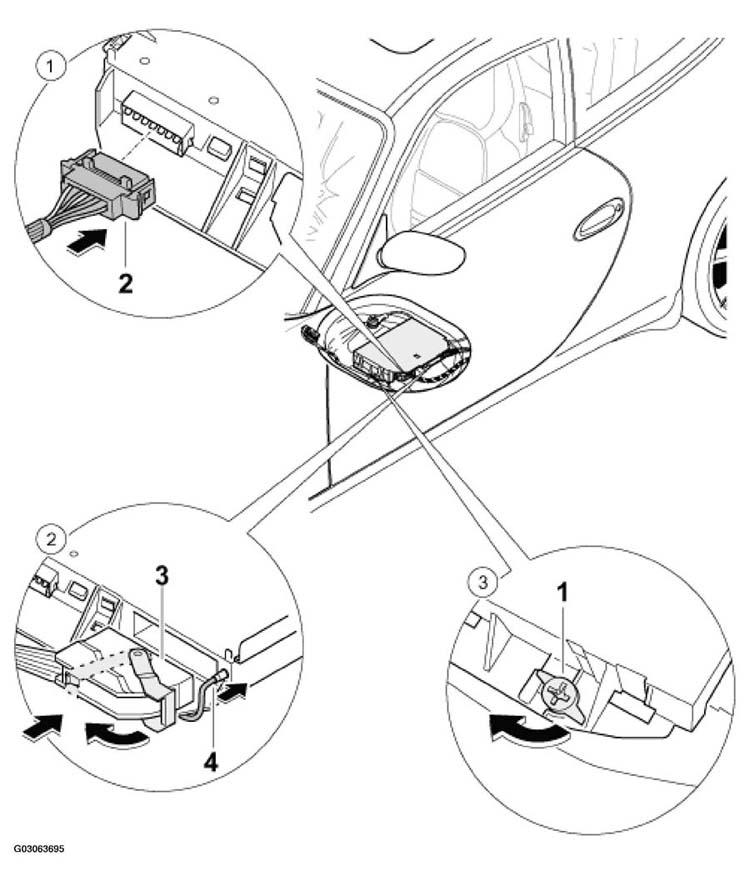

| 1 | Inserting the connectors | Insert the connector -2- . See Fig 1 . |
| 2 | Inserting the connectors | Insert connector -4-3- . See Fig 1 . |
| 3 | Screwing control unit tight | Engage the control unit in the opening on the vehicle floor and close the lock -1-direction of the arrow- . See Fig 1 . |
| Installing left front seat | ||
| Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 | ||
