Mounting collapsible spare wheel - Turbo with PCCB

NOTE: The collapsible wheel is mounted at the front or rear axle wheels using the standard wheel bolts -A- M14 x 1.5 (length 45 mm) dimension -X-. See Fig 1.

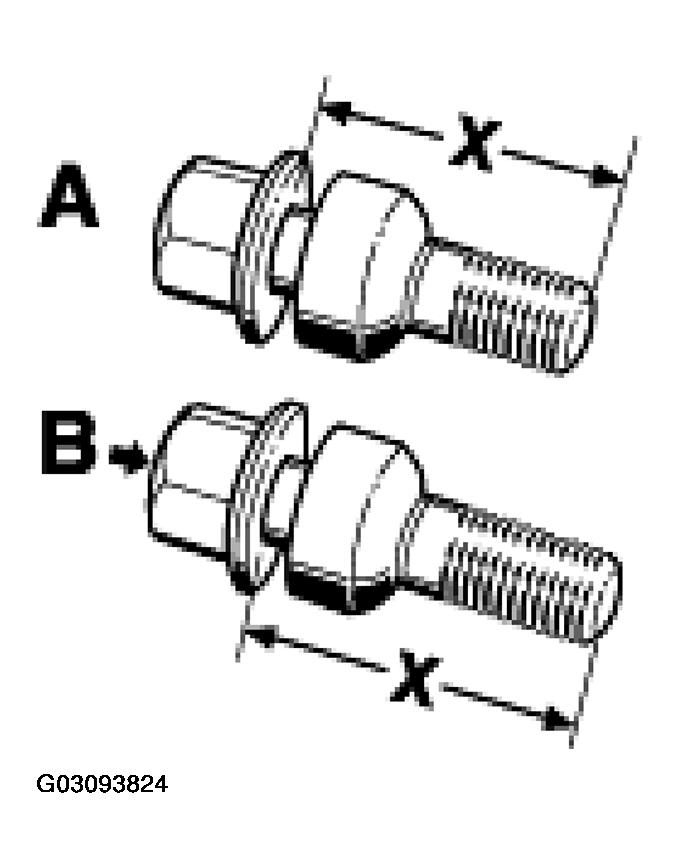

Fig 1: Identifying Wheel Bolt Length

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WARNING: Vehicles with PCCB (Porsche Ceramic Composite Brake): Danger of injury and material damage through impaired brake function exists if brake discs are damaged during the mounting/removal of wheels.

• Use assembly pins in order to exclude any possibility of heavy contact of the wheel with the brake disc.

• Screw the two enclosed assembly pins, instead of two wheel bolts, into the wheel hub before wheel removal/mounting. During removal, first remove the three remaining wheel bolts and remove the wheel carefully, without touching the brake discs.

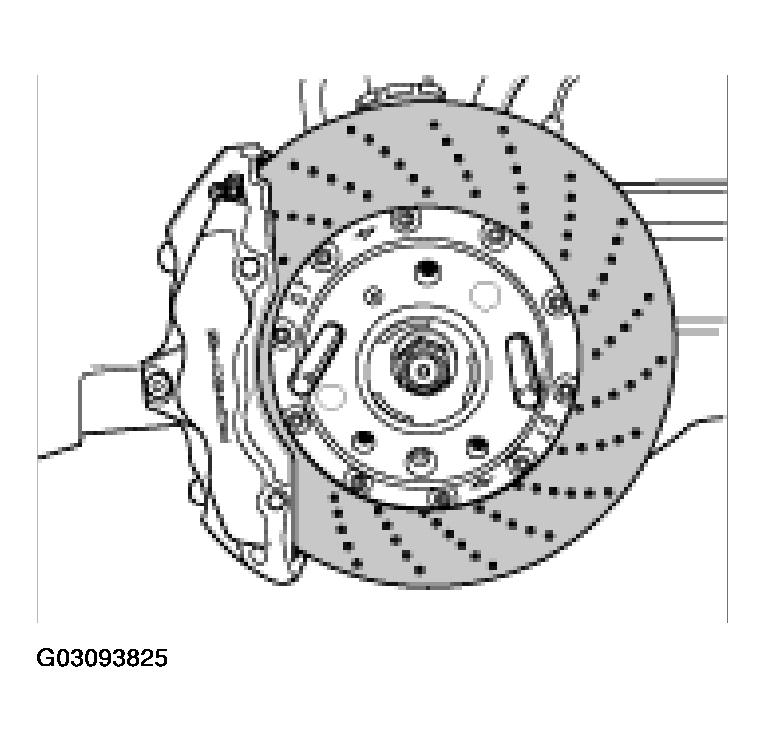

  Fig 2: Identifying Disk Brake

  Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The assembly pins can be ordered separately as a spare part! Part Nos.: 999 571 074 30.
