Removing and installing front wheel bearing: Tools

WARNING: This page is about a different variant/trim than selected.

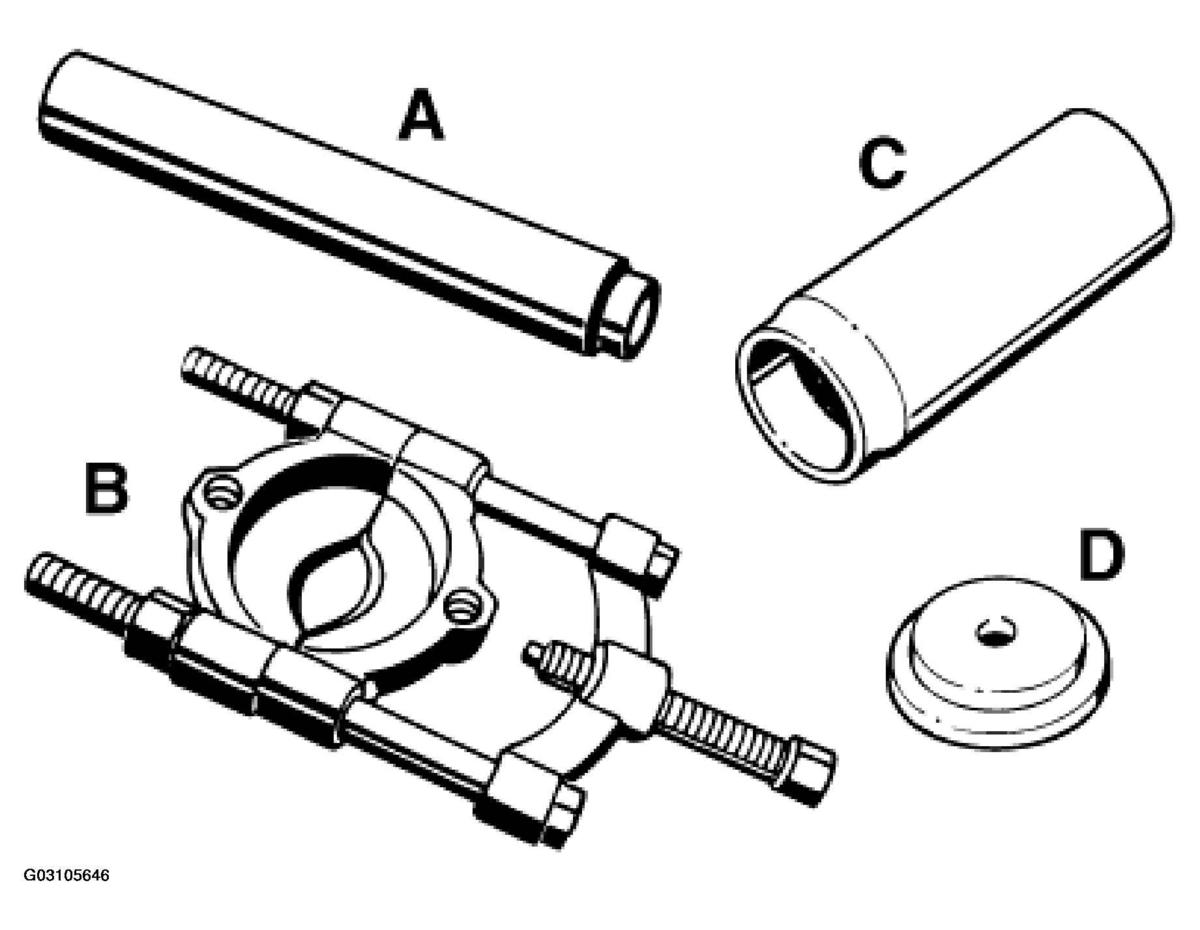

Fig 1: Identifying Special Tools Used For Wheel Bearing
G03105646Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOLS DESCRIPTION

Item Designation Special tool Erl"AUML"Auterung
A Pressure piece P 297 A For pressing out the wheel hub
B Separator (12-115 mm diameter) Commercially available Used as a support when pressing out the wheel hub and when pressing the wheel bearing inner race off the wheel hub
C Tubular piece VW 415 A For pressing the wheel bearing out and in
D Pressure piece 9247/4 Use in combination with tubular piece C to press in the wheel bearing
