Differences with respect to the series control arm
WARNING: This page is about a different variant/trim than selected.

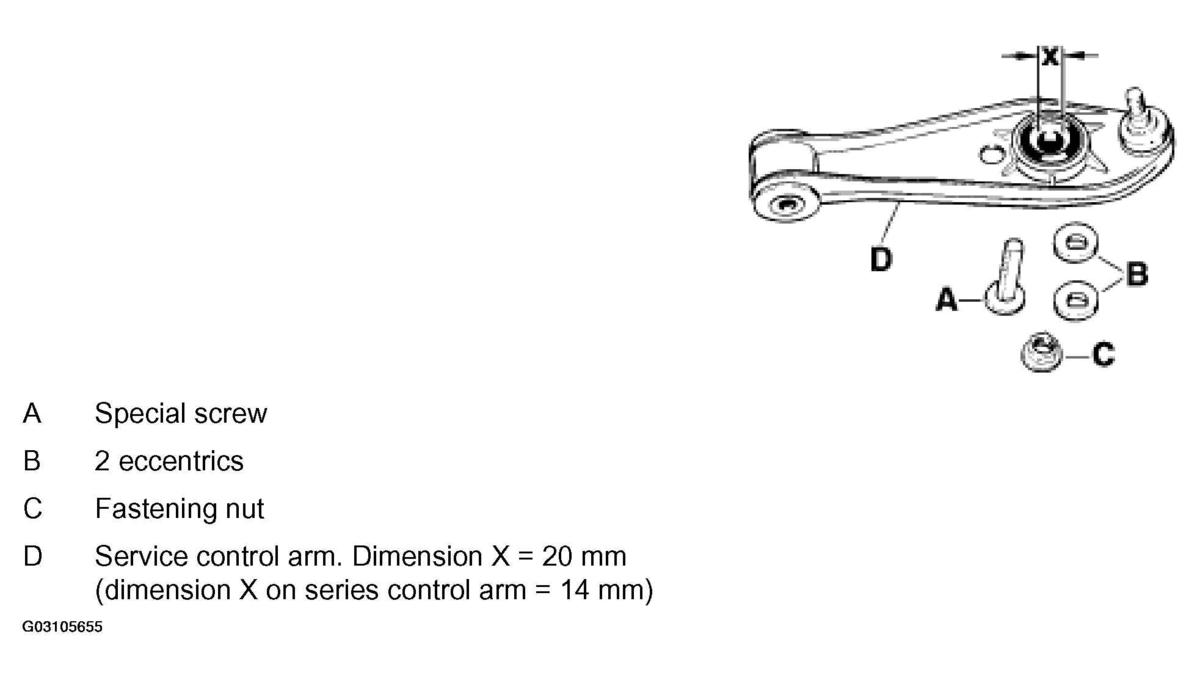

In order to realize caster adjustment, the service control arm is provided with a special bearing at the connecting point to the diagonal arm.
This special bearing has a larger bore with respect to the series control arm (dimension X). There are also corresponding bearing surfaces for the two eccentrics.
