Impermissible combination

WARNING: This page is about a different variant/trim than selected.

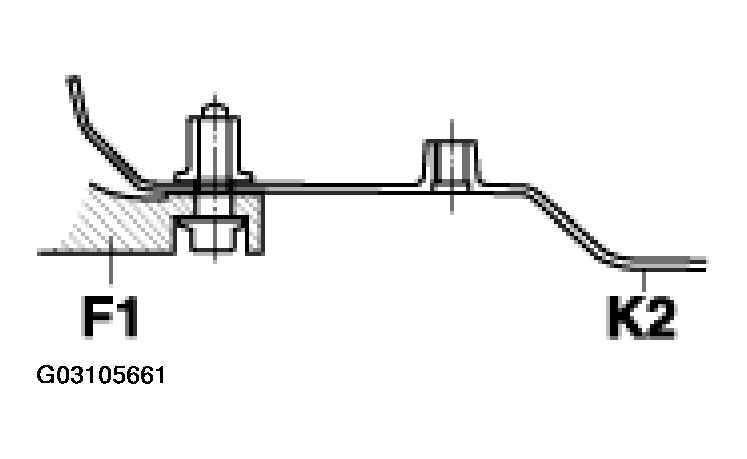

Front-axle cross member with one fastening bore -F1-  and body with two fastening points -K2-.  See Fig 1 .

Fig 1: Identifying Impermissible Combination
G03105661Courtesy of PORSCHE OF NORTH AMERICA, INC.


The combination - front-axle cross member with two fastening bores and (F2) and body with one fastening point (K1) - is not possible!
