Installing cover for the seat cushion.

WARNING: This page is about a different variant/trim than selected.

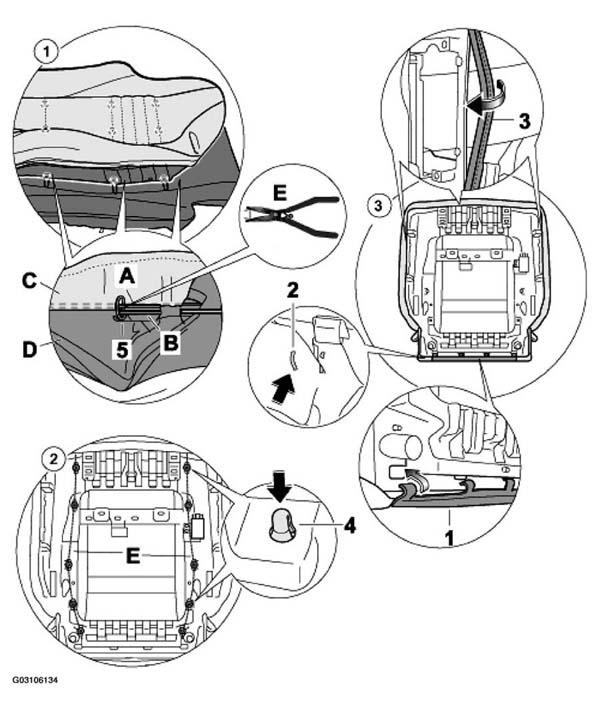

Fig 1: Installing Cover For Seat Cushion
G03106134Courtesy of PORSCHE OF NORTH AMERICA, INC.
SEAT CUSHION COVER INSTALLING PROCEDURE

No.  Procedure  Instructions
1 Mounting the seat cover on to the foam part (seat cushion) Position seat cover covering strips -C-A-D-E-B-A  (seat cushion). See Fig 1 .
2 Mounting the seat cover on to the cushion carrier Note: The plastic clips -4-4-E-  . See Fig 1 .
3 Fitting seat cover onto the cushion carrier Fit the seat cover over the foam part so that it is free from wrinkles. Push the push-on bead -3-1-2-  . See Fig 1 .
  Installing cushion carrier See INSTALLING FRONT CUSHION CARRIER .
CAUTION:
  • Danger of material damage if excessive heat is applied!
  • If creases form, only short partial warming with the hot-air gun is permissible. Always observe the hot-air temperature of approx. 50 degrees Celsius (122 Fahrenheit).
  Remedying creases in the backrest cover If creases form in the areas of the backrest cover, heat them partially with the hot-air gun.
