Seat heating line route

WARNING: This page is about a different variant/trim than selected.

-A- Plug connection for backrest heating element. See Fig 1 .
-a- Press plug for backrest heating element together -arrow- and pull from the plug connection -A- . See Fig 1 .
-B- Plug connection for seat heating element. See Fig 1 .
-b- Push plug for seat heating element onto -B- until the plug connection engages. See Fig 1 .
-C- Base for seat heating control module. See Fig 1 .
-D- Connection for seat heating wiring harness for the central plug. See Fig 1 .
-E- Power supply, plug for central plug. See Fig 1 .

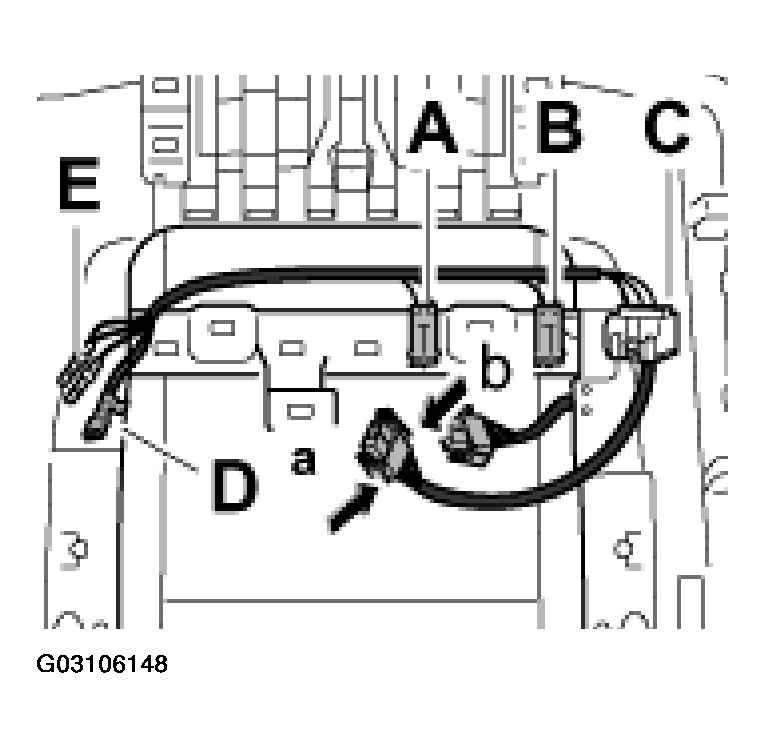

Fig 1: Identifying Seat Heating Line Route

Courtesy of PORSCHE OF NORTH AMERICA, INC.
