Removing and installing pin housing for seat heating and belt buckle

WARNING: This page is about a different variant/trim than selected.

-C- Seat heating pin housing. See Fig 1 .
-D- Belt buckle pin housing. See Fig 1 .

Removing pin housing for seat heating and belt buckle
See REMOVING AND INSTALLING FRONT SEAT - AS OF MY 1996 .
1. Cut tie wrap on rear side of central plug with side cutters.
2. Push fuse -2- away from flat connector in -direction of arrow 2- . See Fig 1 .
3. Pin housing: Push out the belt buckle -D- and seat heating -C- in -direction of arrow 1- . See Fig 1 .

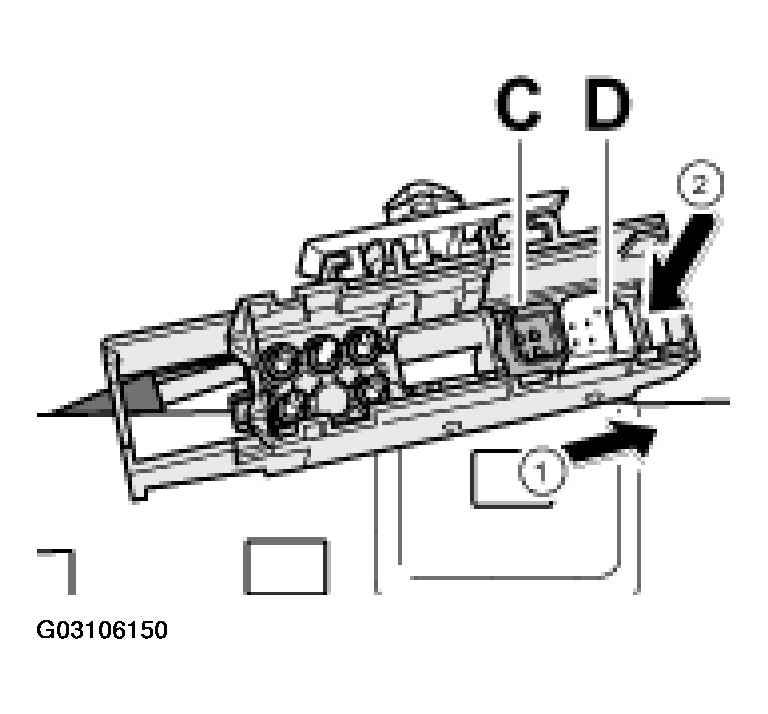

Fig 1: Removing/Installing Pin Housing For Seat Heating And Belt Buckle

G03106150

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing pin housing for seat heating and belt buckle
1. First insert the seat heating pin housing -C- , then the belt buckle -D- into the flat connector. See Fig 1 .
2. Push fuse -2- onto the flat connector. See Fig 1 .
3. Observe the line route and secure with tie wraps on the rear side of the flat connector.
