Central plug

WARNING: This page is about a different variant/trim than selected.

-A- Coding pin: In the Boxster in opening 2, in the 911 Carrera and 911 Turbo in opening 5. Pin BR opening 6, pin RE/VI opening 3. See Fig 1 .
-B- Slide in lock-in position. See Fig 1 .

Removing coding pin and pin. See REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
1. Pull slide -B- in -direction of arrow 1- . See Fig 1 .
2. Lever out fuse -arrow 2- with a small screwdriver and remove completely. See Fig 1 .
3. Pull out coding pin -A- with pliers. Press pin out of flat connector using press-out tool. See Fig 1 . See TOOLS .

Installing coding pin and pin
1. Insert coding pin -A- and pin into the flat connector until it engages. See Fig 1 .
2. Insert fuse -2- in -direction of arrow- until it engages. See Fig 1 .
3. For seat installation: Insert counter plug into vehicle and push in slide -B- . See Fig 1 .

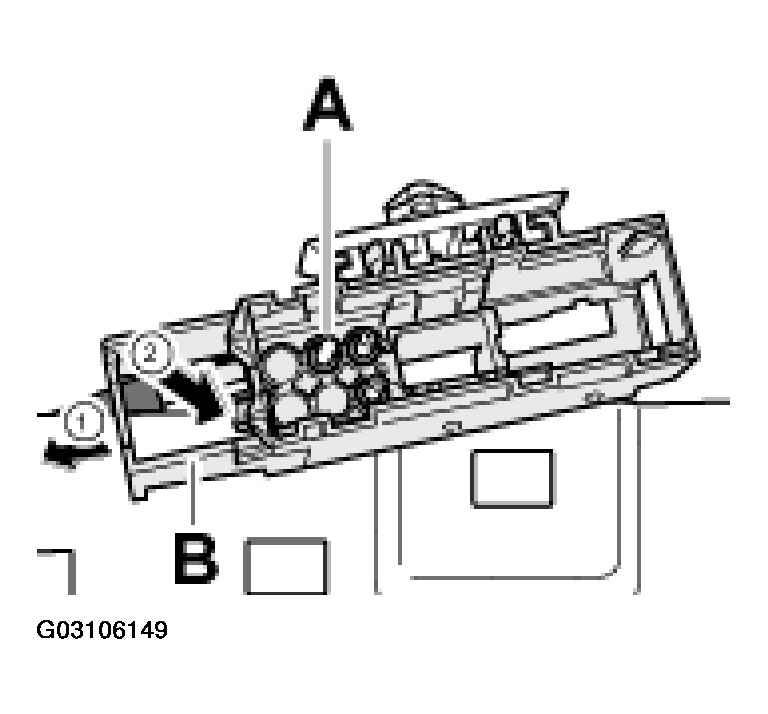

Fig 1: Removing/Installing Coding Pin And Pin

G03106149

Courtesy of PORSCHE OF NORTH AMERICA, INC.
