Removing front cushion carrier

WARNING: This page is about a different variant/trim than selected.

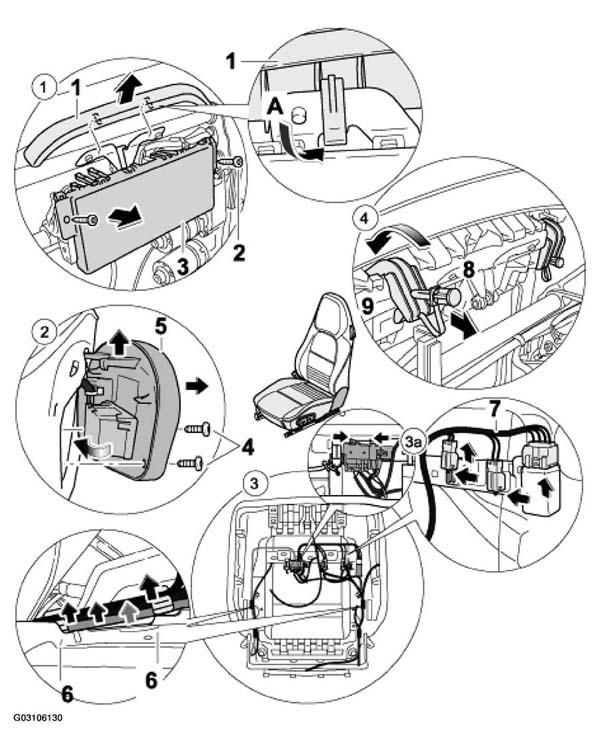

Fig 1: Removing Front Cushion Carrier (As Of MY 1996)
G03106130Courtesy of PORSCHE OF NORTH AMERICA, INC.
FRONT CUSHION CARRIER REMOVING PROCEDURE (AS OF MY 1996)

No. Procedure Instructions
1 Removing control module and cover Lift both holders of the cover -1-direction of arrow A-2-9-  . See Fig 1 .
2 Removing switch for seat adjustment Unscrew fastening screw -4-5-arrow-direction of arrow-  . See Fig 1 .
3 Disconnecting wiring harness Disconnect electrical plug connection of the seat heating, unclip the lines from the metal clips -6-  . See Fig 1 .
3a Removing wiring harness Remove wiring harness -7-arrow-  . See Fig 1 .
4 Removing seat cushion from seat frame. Insert the retainer -8-9-9-  . See Fig 1 .
