Relay Support 2

Relay support 2 is located on left side of engine compartment back wall. See Fig 1 for relay support 2 layout.

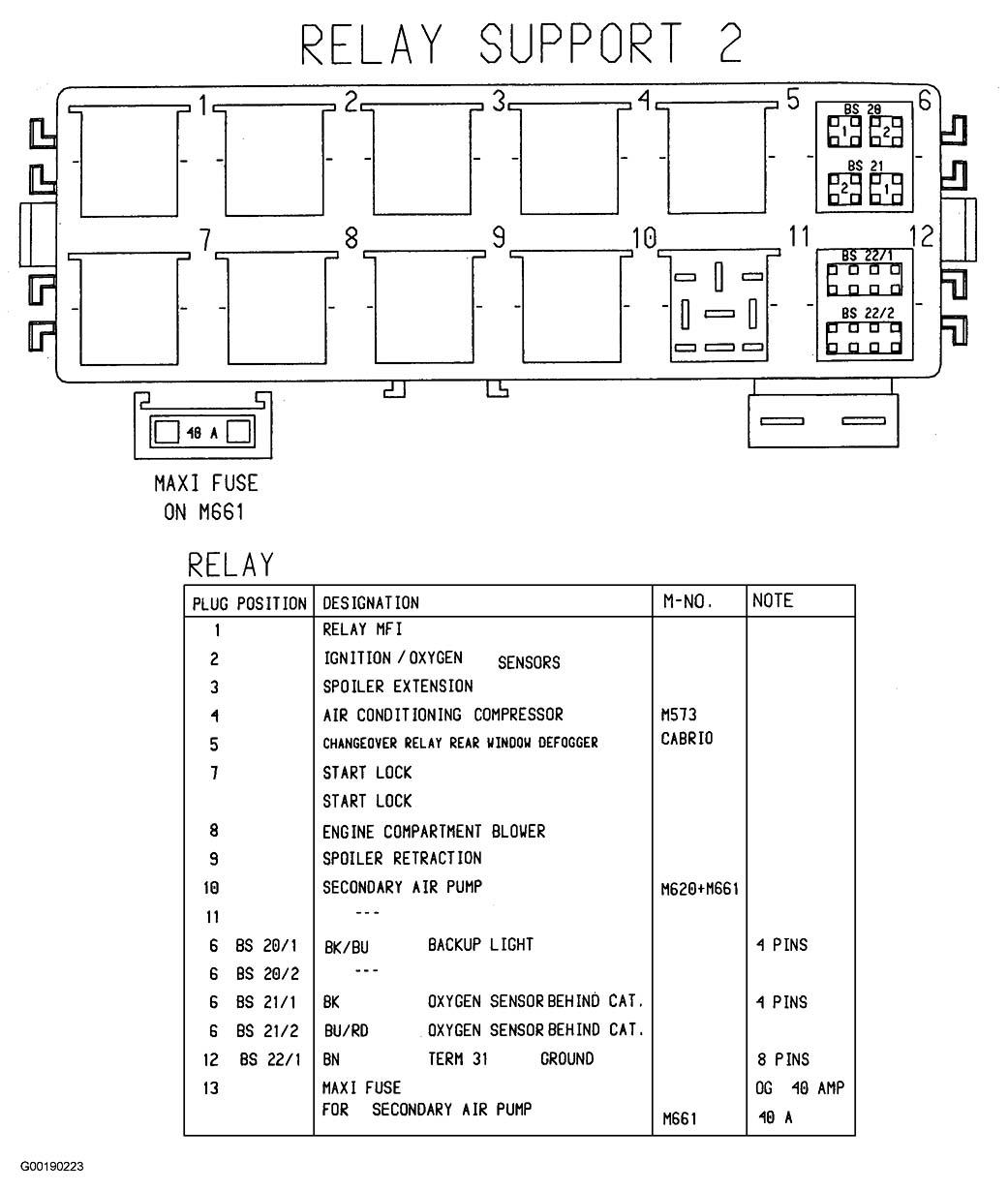

Fig 1: Identifying Relay Support 2 Components
G00190223Courtesy of PORSCHE OF NORTH AMERICA, INC.
