Relay Support 1

Relay support block 1 is located in driver-side footwell next to fuses support block. See Fig 1 and Fig 2 for relay support layout and distributor bridge plug positions.

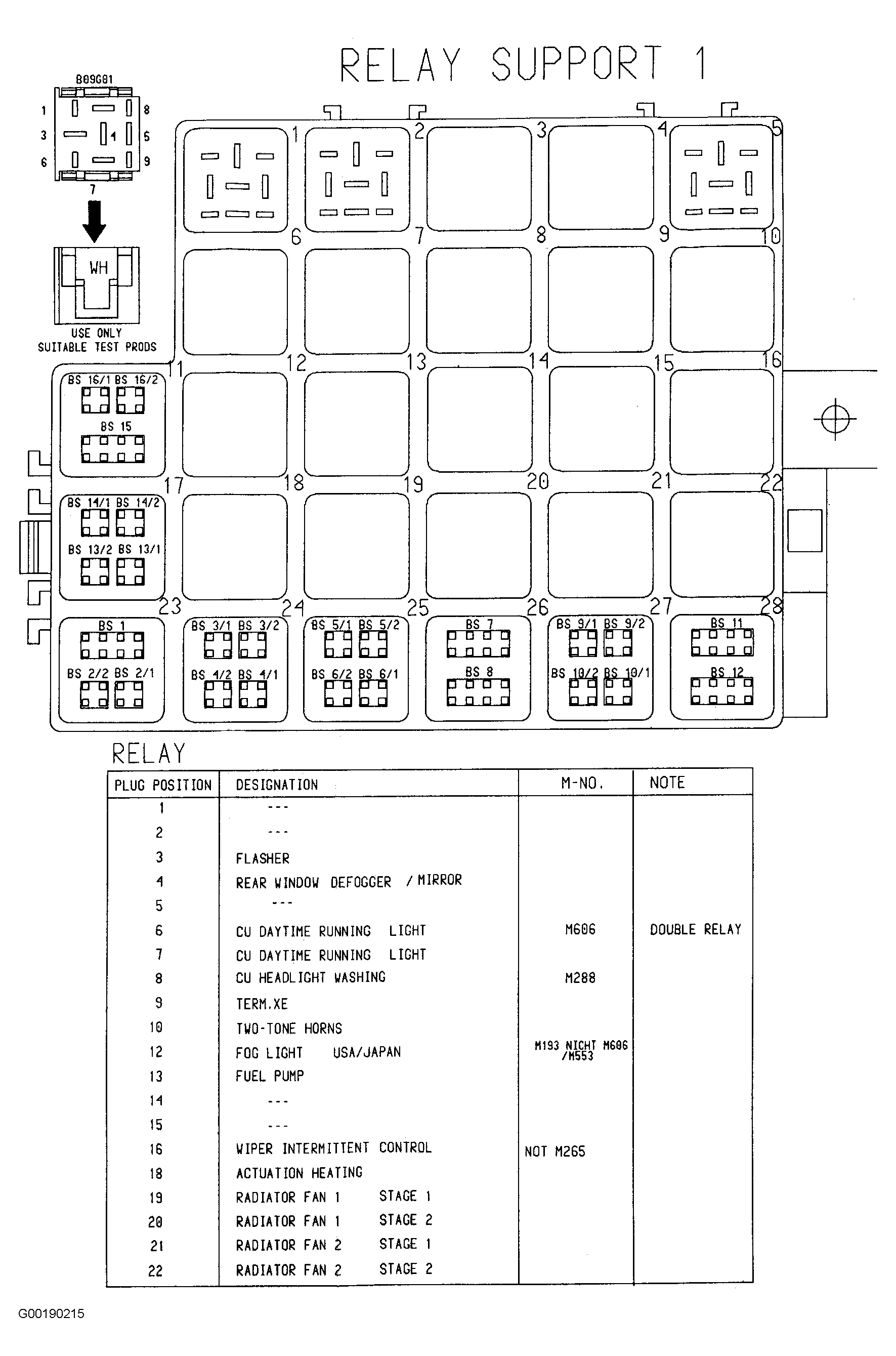

Fig 1: Identifying Relay Support 1 & Plug Designations

Courtesy of PORSCHE OF NORTH AMERICA, INC.

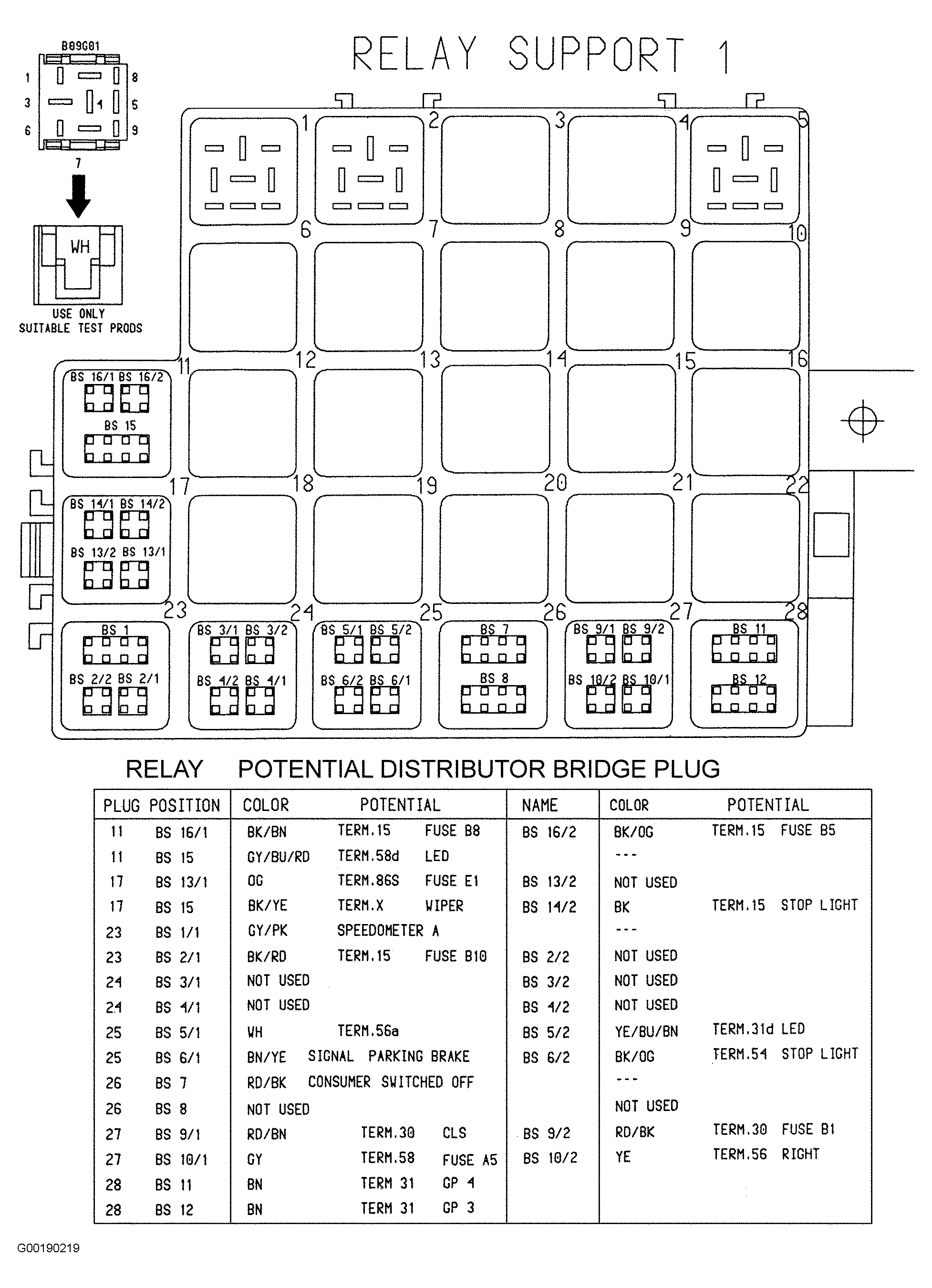

Fig 2: Identifying Distributor Bridge Plug Designation On Relay Support 1

Courtesy of PORSCHE OF NORTH AMERICA, INC.
