Fuses Support

NOTE: Fuses support (fuse block) is located in driver's footwell, behind access cover in left kick panel.

See Fig 1 for fuses support layout. See Fig 2 and Fig 3 for fuse designation.

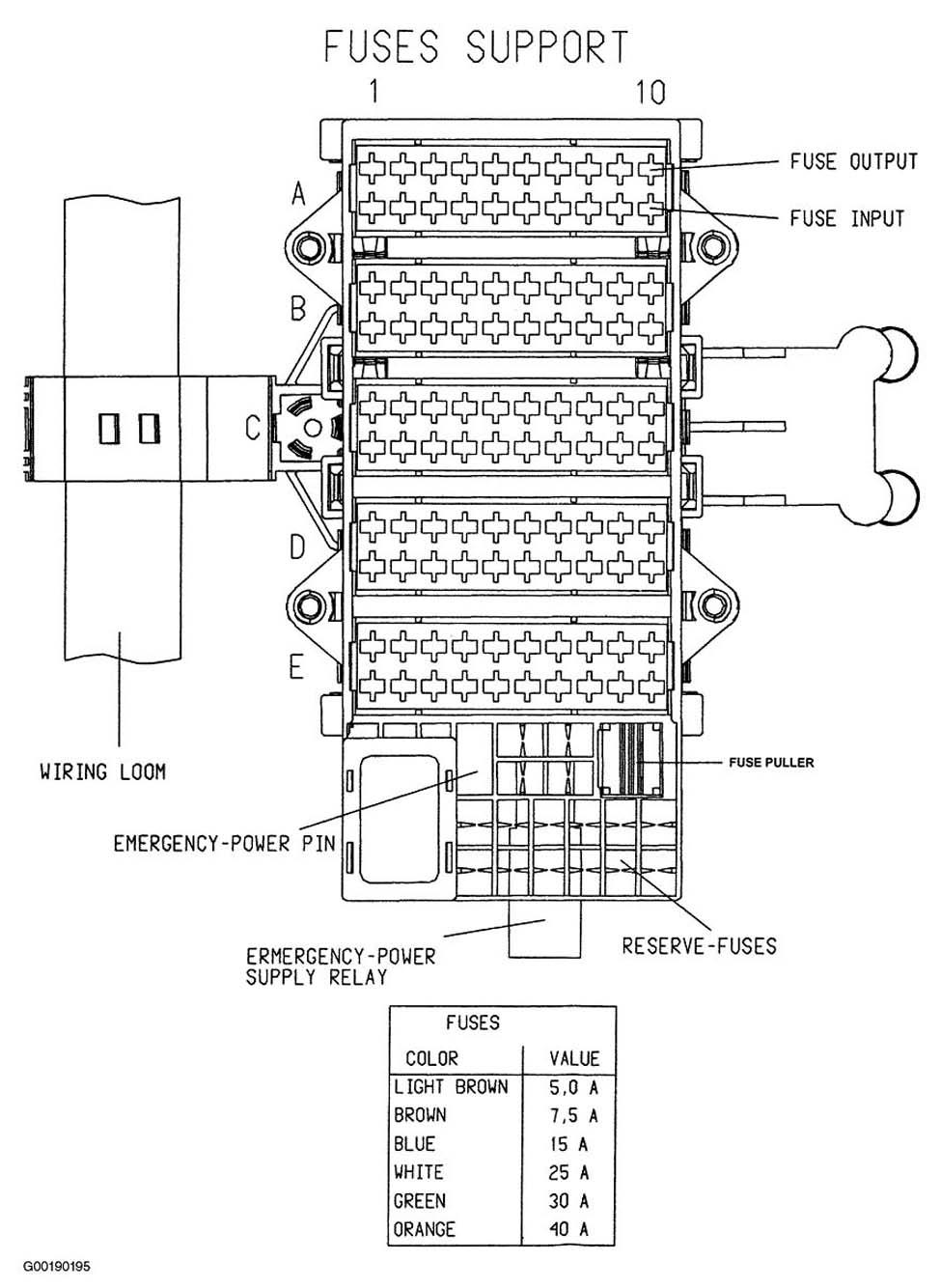

Fig 1: Identifying Fuses Support Block Layout

Courtesy of PORSCHE OF NORTH AMERICA, INC.

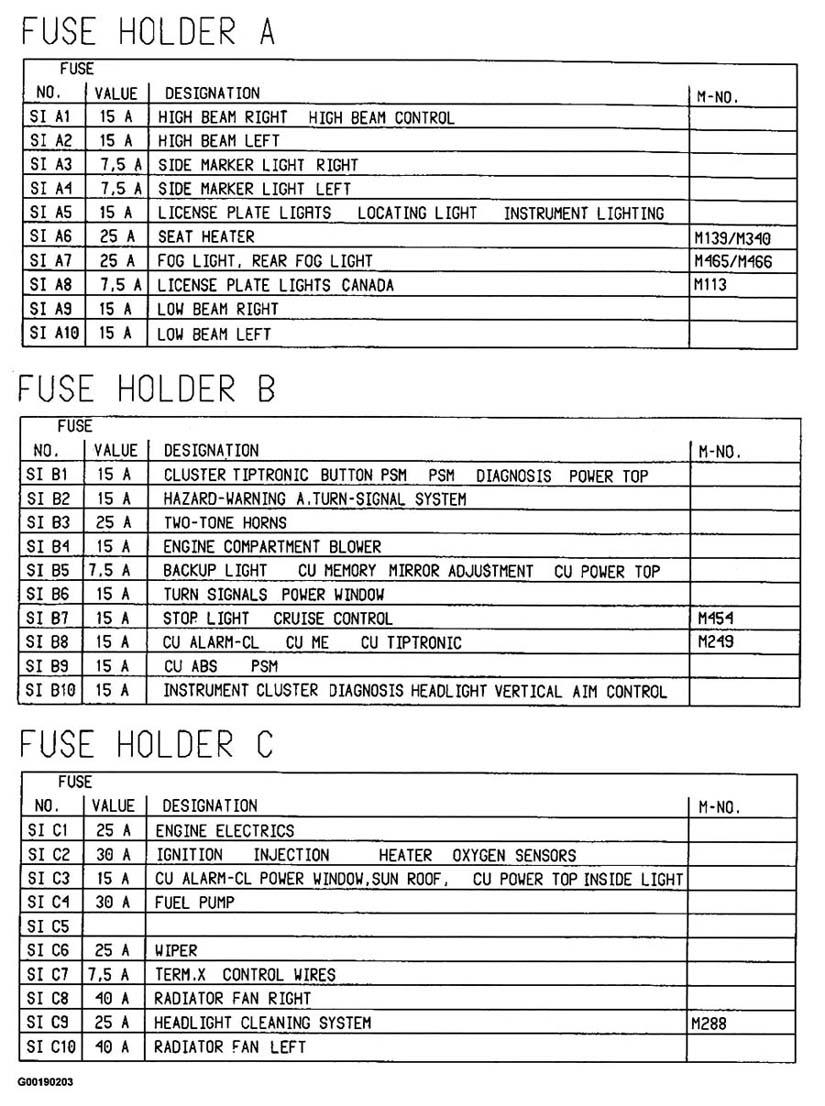

Fig 2: Identifying Fuse Blocks A, B & C

Courtesy of PORSCHE OF NORTH AMERICA, INC.

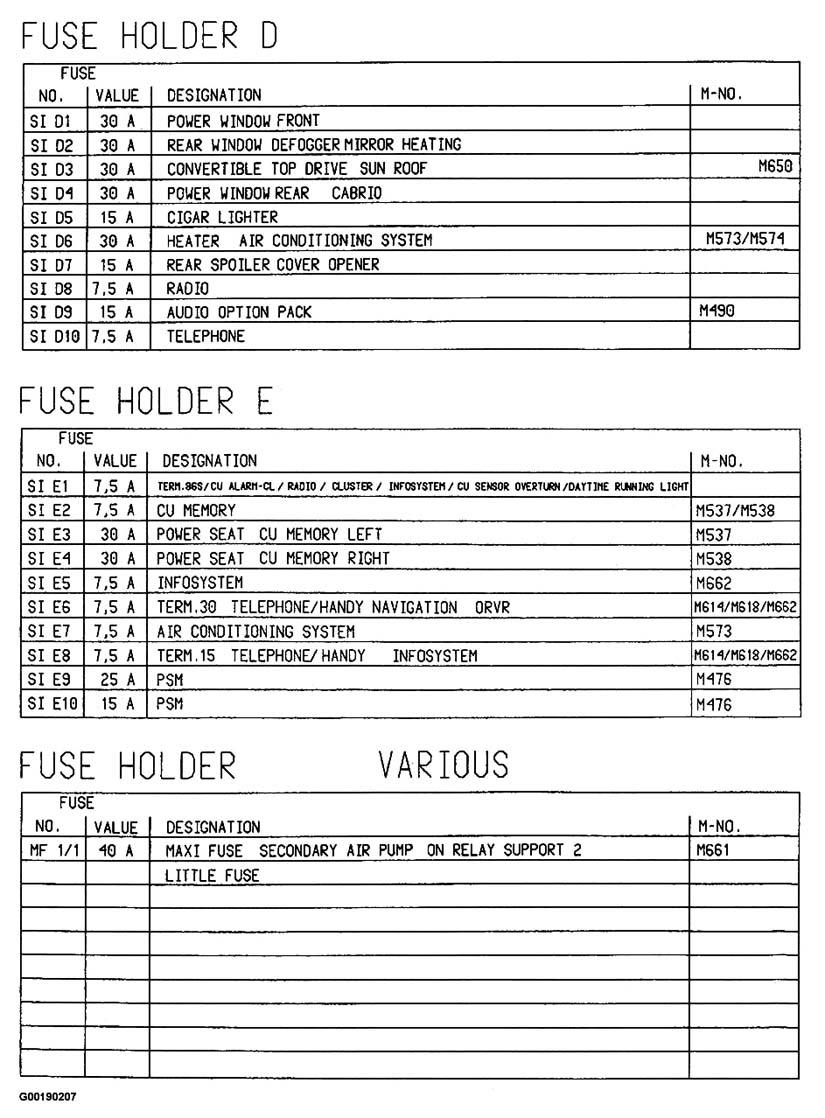

Fig 3: Identifying Fuse Blocks D, E & "Various"

Courtesy of PORSCHE OF NORTH AMERICA, INC.
