Fuses & Circuit Breakers - 911 CARRERA
>>
Identification
>>
Current Distributor
Current Distributor
See
Fig 1
for current distributor layout.

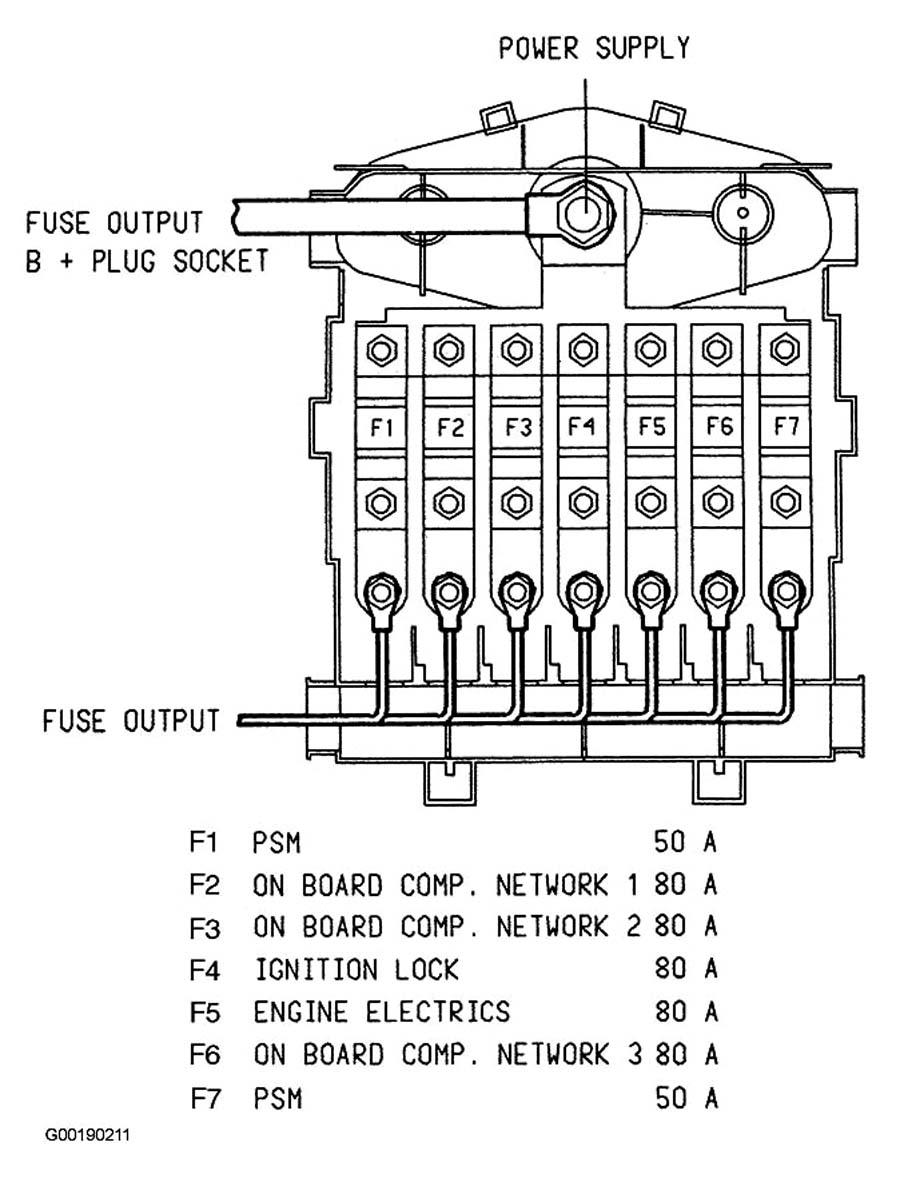

Fig 1: Identifying Current Distributor (911 Carrera)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
