Removing the three-phase generator

  1. Disconnect the battery and cover terminal or battery.
  2. Remove the complete air cleaner assembly. Undo the fastening screw for the air cleaner housing and the hose clamp on the air flow sensor.
  3. Undo the hose on the charge air cooler at the left and right on the pressure pipe.
  4. Disconnect the electrical plug connection on the air flow sensor and remove the complete air cleaner assembly.
  5. Remove the pressure pipe to the throttle body.
  6. Relieve the drive belt at the tensioning pulley and remove the belt.
  7. Remove the deflection roller under the three-phase generator.
  8. Disconnect the cable lug of the B+ lead to the three-phase generator at the B+ disconnection point.
  9. Undo left fastening screw (in direction of travel) and remove.

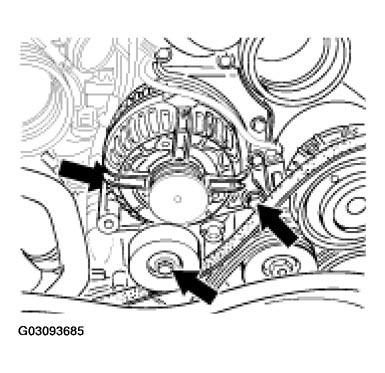

    Fig 1: Removing Generator Fastening Screws
    G03093685Courtesy of PORSCHE OF NORTH AMERICA, INC.
  10. Undo right fastening screw by three turns.
  11. A gentle tap on the fastening screw loosens the threaded bushing in the three-phase generator arm (use aluminum mandrel). Unscrew fastening screw.
  12. Remove three-phase generator and carefully pull a little to the rear.
  13. Press the plug connection towards the three-phase generator housing, release and pull off.
  14. Remove the three-phase generator towards the rear and disconnect the B+ lead.
