Checking brake light switch setting

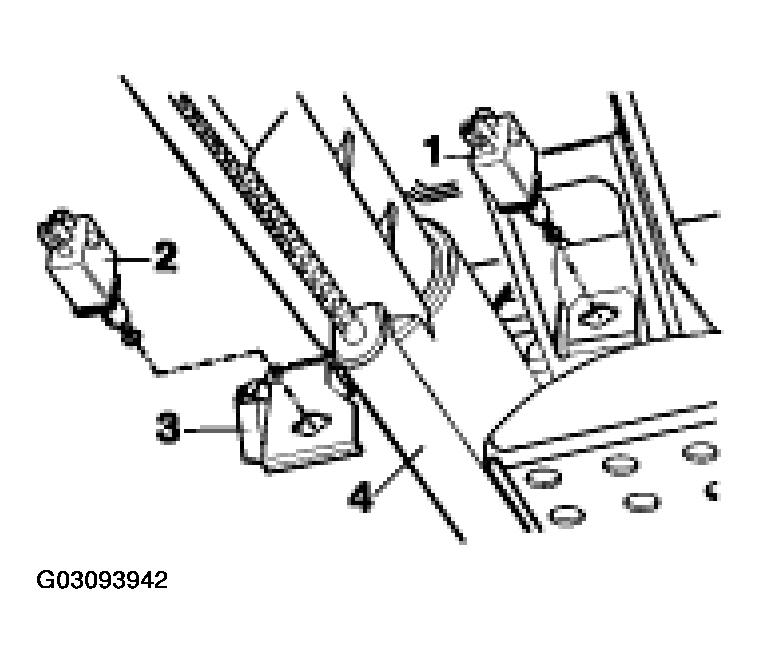

- The pedal must move a perceptible distance of approx. 5 to 10 mm before the brake light lights up (stop light switch -1- ).
- Check (make sure) that the brake light lights up before the pedal meets perceptible resistance or before brake pressure builds up.
