Removing side window
REMOVING SIDE WINDOW
| No. | Procedure | Instruction |
|---|---|---|
| Removing B & C pillars | See REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS | |

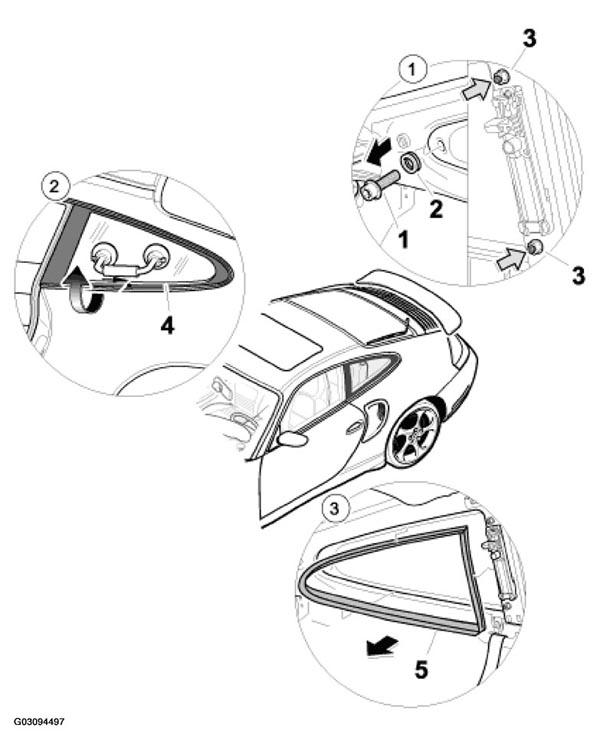

| 1 | Unscrew fastening nuts and screws. | Unscrew the fastening screw-1-2-3- |
| 2 | Remove side window. | Pull out side windows -4-in direction of arrow- |
| 3 | Pull off the rubber seal | Pull off rubber seal-5- |
| Removing the side window seal and retaining strip, see: | See REMOVING SIDE WINDOW SEAL |
